FOD8332V - onsemi

Description: 100 ns Maximum Pulse Width Distortion; Active Miller Clamp to Shut Off IGBT During High dv/dt without Negative Supply Voltage; P-Channel MOSFETs at Output Stage Enable Output Voltage Swing Close to Supply Rail (Rail-to-Rail Output); Fast Switching Speed Over Full Operating Temperature Range; Wide Supply Voltage Range: 15 V to 30 V; 2.5 A Peak Output Current Driving Capability for Medium Power IGBT; UL1577, 4,243 V RMS for 1 Minute; Extended Industrial Temperate Range: –40°C to 100°C; 250 ns Maximum Propagat

Download FOD8332V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

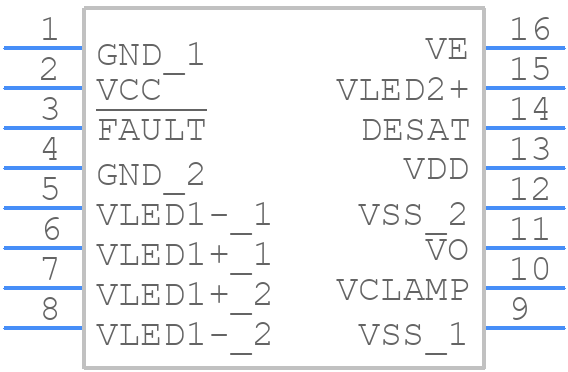

FOD8332V - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD8332V - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO 16L WB
click to zoom
3D Models
FOD8332V - onsemi - 3D model - Small Outline Packages - SO 16L WB
click to zoom

FOD8332V Details

  • Manufacturer Part Number:

    FOD8332V

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    751EN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

FOD8332V Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD8332V involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to 5V.
  • The FOD8332V can sink or source up to 10mA of current, making it suitable for driving small loads such as LEDs or logic gates.
  • To protect the FOD8332V from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
  • The FOD8332V operates over a temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD8332V Overview

Use the download button to access the FOD8332V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD83, or try a keyword search, such as MOSFET Drivers
