FOD8333R2V - onsemi

Description: 250 ns Maximum Propagation Delay; “Soft” IGBT Turn-Off; Automatic Fault Reset after Fixed Mute Time, Typically 33 μs; Extended Industrial Temperate Range:; Fast Switching Speed Over Full Operating Temperature Range; 2.5 A Peak Output Current Driving Capability for Medium Power IGBT; High Noise Immunity Characterized by Common Mode Rejection – 35 kV/μs Minimum, VCM = 1500 VPEAK; Desaturation Detection; Integrated IGBT Protection; UL1577, 4,243 VRMS for 1 Minute; Wide Supply Voltage Range: 15 V to 30 V; DIN-E

Download FOD8333R2V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

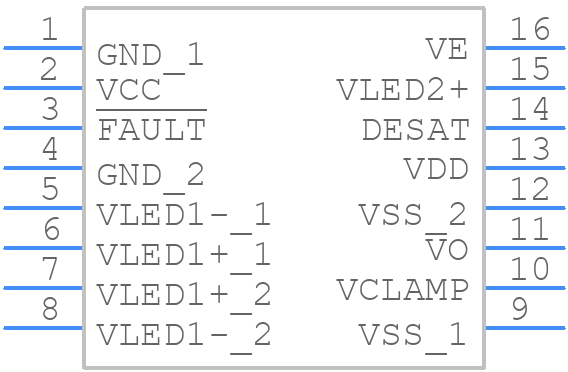

Symbol
FOD8333R2V - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD8333R2V - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - JEDEC MS-013 (SOIC-16)
click to zoom
3D Models
FOD8333R2V - onsemi - 3D model - Small Outline Packages - JEDEC MS-013 (SOIC-16)
click to zoom

FOD8333R2V Details

  • Manufacturer Part Number:

    FOD8333R2V

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    751EN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

FOD8333R2V Frequently Asked Questions (FAQs)

  • A good PCB layout for FOD8333R2V involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The EN pin should be tied to VCC or a digital signal for enable/disable functionality. The input pins (IN+ and IN-) should be biased to a voltage within the recommended common-mode range.
  • The FOD8333R2V can drive a maximum capacitive load of 100 pF. Exceeding this limit may result in oscillations or instability.
  • To protect the FOD8333R2V from ESD and overvoltage, use TVS diodes or ESD protection devices on the input and output pins. Additionally, consider adding a 1 kΩ resistor in series with the input pins to limit the current in case of an overvoltage event.
  • The recommended operating temperature range for the FOD8333R2V is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD8333R2V Overview

Use the download button to access the FOD8333R2V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD83, or try a keyword search, such as Other Interface ICs
