A good PCB layout for FOD8802C involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input pins (IN+ and IN-) should be biased to a voltage between 0V and VCC, with a maximum differential voltage of 200mV.
The maximum allowable current through the output pins (OUT+ and OUT-) of FOD8802C is 10mA. Exceeding this current may cause damage to the device or affect its accuracy.
FOD8802C has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads.
The operating temperature range of FOD8802C is -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD8802C Overview

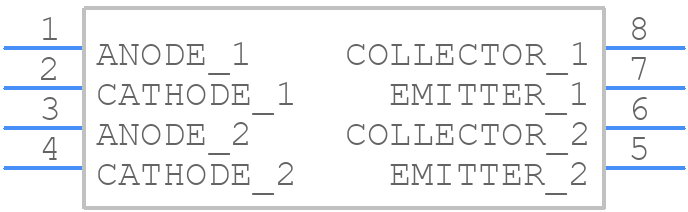

Use the download button to access the FOD8802C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD88,
or try a keyword search, such as Optocoupler
