FOLC-140-01-L-Q-LC - SAMTEC

Description: 160 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Download FOLC-140-01-L-Q-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FOLC-140-01-L-Q-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints

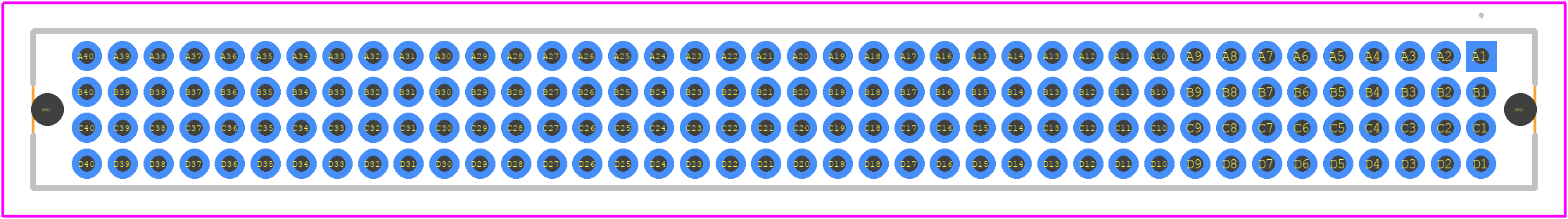

FOLC-140-01-L-Q-LC - SAMTEC PCB footprint - Other - Other - FOLC-140-01-L-Q-LC-2
click to zoom
3D Models
FOLC-140-01-L-Q-LC - SAMTEC - 3D model - Other - FOLC-140-01-L-Q-LC-2
click to zoom

FOLC-140-01-L-Q-LC Details

  • Manufacturer Part Number:

    FOLC-140-01-L-Q-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Additional Feature:

    FOURRAY, TIGER EYE CONTACT

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    160

FOLC-140-01-L-Q-LC Frequently Asked Questions (FAQs)

  • The recommended mating sequence for FOLC-140-01-L-Q-LC is to mate the contacts first, followed by the latches. This ensures proper alignment and prevents damage to the connector.
  • Yes, the FOLC-140-01-L-Q-LC is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
  • The FOLC-140-01-L-Q-LC has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
  • The FOLC-140-01-L-Q-LC is designed for use with PCBs of 1.57 mm thickness. However, Samtec offers variations of this connector that can accommodate different PCB thicknesses. Consult with Samtec or a authorized distributor for more information.
  • Samtec recommends using a soft, dry brush or a lint-free swab to remove any debris or contaminants from the connector. Avoid using harsh chemicals or solvents, as they may damage the connector's materials.
