FP100R12KT4BOSA1 - Infineon

Description: Trans IGBT Module N-CH 1200V 100A 515mW 35-Pin ECONO3-3 Tray

Download FP100R12KT4BOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

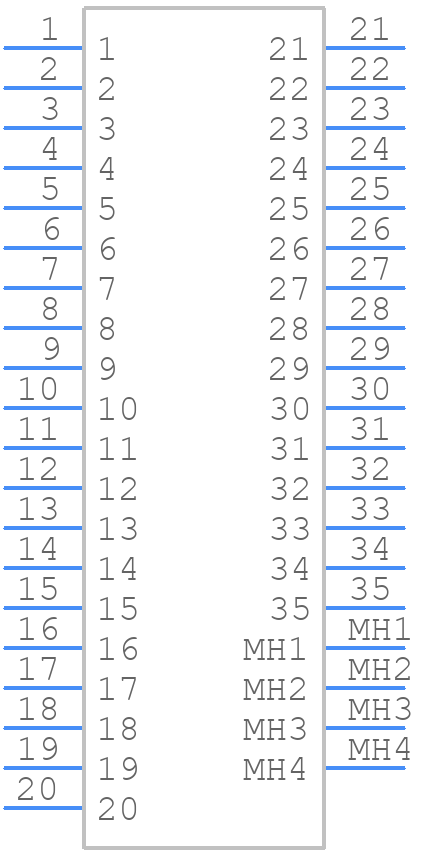

Symbol
FP100R12KT4BOSA1 - Infineon - PCB symbol
click to zoom

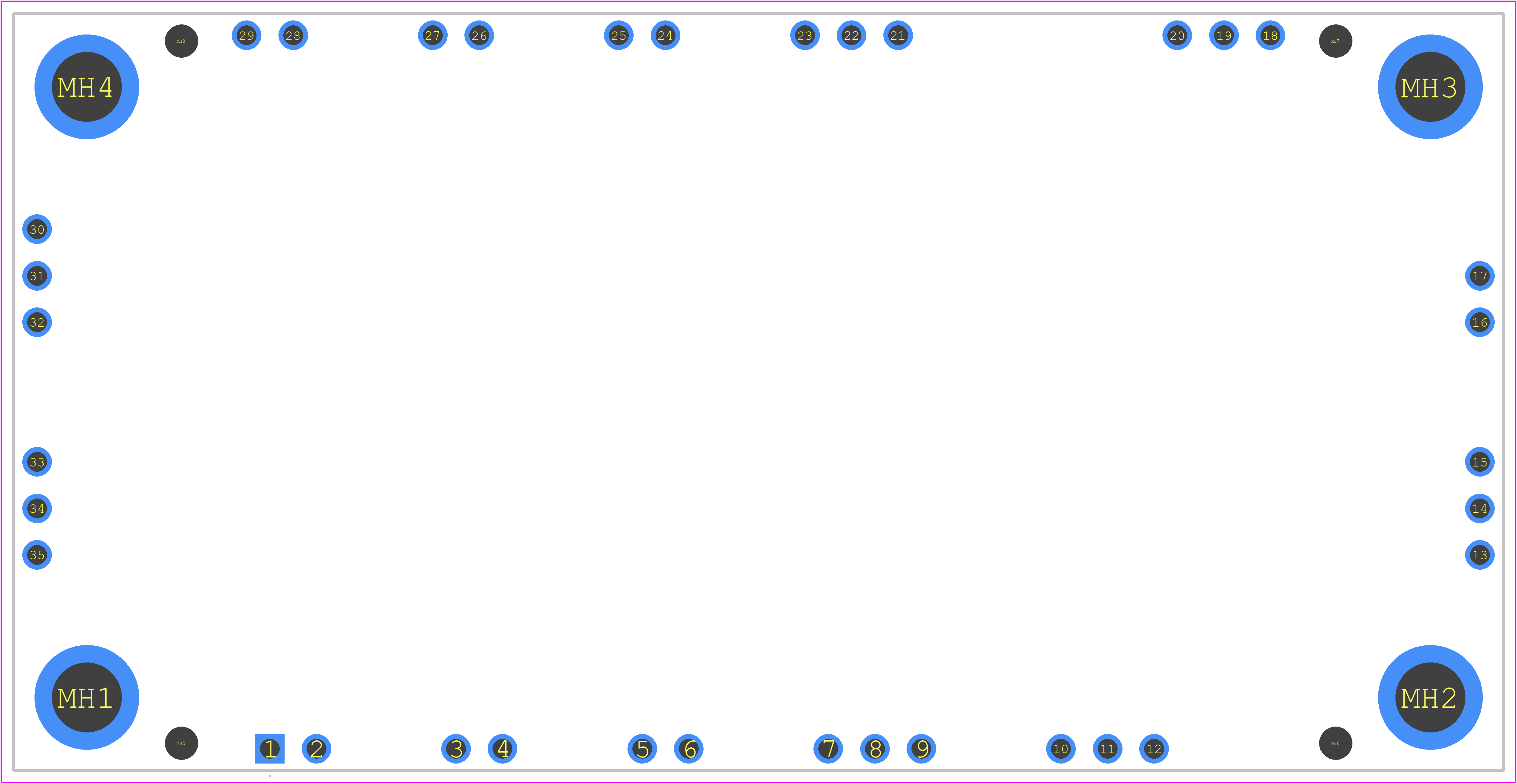

PCB Footprints
FP100R12KT4BOSA1 - Infineon PCB footprint - Other - Other - AG-ECONO3B
click to zoom
3D Models
FP100R12KT4BOSA1 - Infineon - 3D model - Other - AG-ECONO3B
click to zoom

FP100R12KT4BOSA1 Details

  • Manufacturer Part Number:

    FP100R12KT4BOSA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    MODULE-35

  • Pin Count:

    35

  • Country Of Origin:

    Germany, Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    7

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    620 ns

  • Turn-on Time-Nom (ton):

    210 ns

FP100R12KT4BOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FP100R12KT4BOSA1 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sink design, thermal interface material selection, and adequate cooling system design.
  • The recommended gate drive voltage for the FP100R12KT4BOSA1 is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the FP100R12KT4BOSA1 from overvoltage and undervoltage conditions, it's recommended to use a voltage regulator or a voltage supervisor circuit to ensure the input voltage remains within the specified range.
  • The maximum allowed current for the FP100R12KT4BOSA1 is 100A, with a maximum pulsed current of 200A.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP100R12KT4BOSA1 Overview

Use the download button to access the FP100R12KT4BOSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP100, or try a keyword search, such as IGBTs
