FP12-200 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, 2.5 V A, 6.3/12.6VDC (Nominal Secondary) Output, 12.6VDC CT at 0.2A Secondary in Series, 6.3VDC at 0.4A Secondary in Parallel, 6Pin

Download FP12-200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FP12-200 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

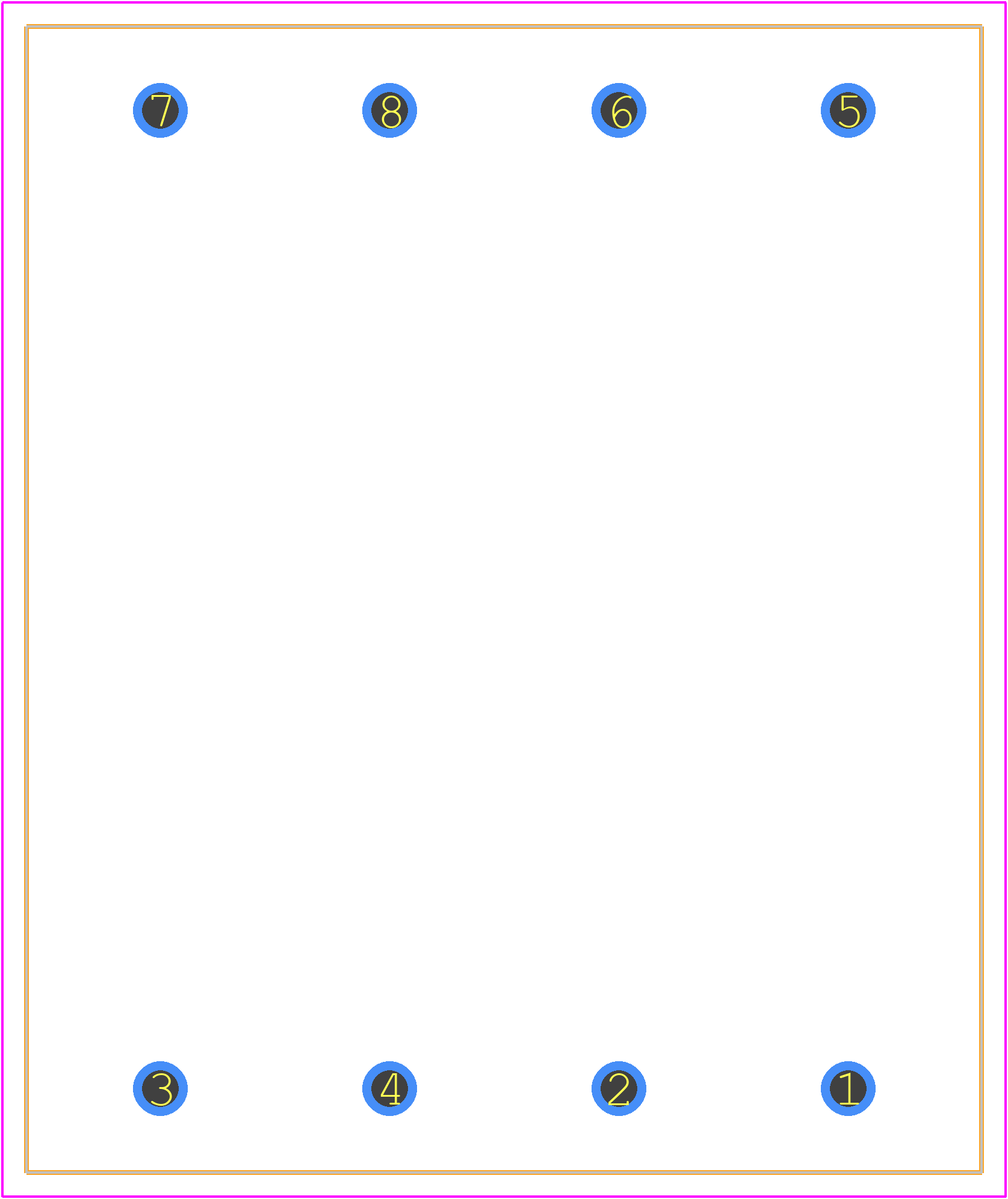

FP12-200 - Triad Magnetics PCB footprint - Other - Other - FP12-200-2
click to zoom
3D Models
FP12-200 - Triad Magnetics - 3D model - Other - FP12-200-2
click to zoom

FP12-200 Details

  • Manufacturer Part Number:

    FP12-200

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Additional Feature:

    PCB MOUNTABLE

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    16.51 mm

  • Isolation Voltage:

    2000 V

  • Length:

    47.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.4 A

  • Output Current 2:

    0.4 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115/230V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    39.67 mm

FP12-200 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FP12-200 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FP12-200 is designed for high-voltage applications and can withstand up to 2000 VRMS between primary and secondary windings.
  • The maximum power rating for the FP12-200 is 12VA, making it suitable for low-power applications such as audio equipment, medical devices, and industrial control systems.
  • The FP12-200 is suitable for use in Class I applications, which require a higher level of insulation and safety features. It is not suitable for Class II applications, which require a lower level of insulation and safety features.
  • The lead time for the FP12-200 can vary depending on the quantity and availability. Typically, the lead time is around 6-8 weeks for standard orders, but it's best to check with Triad Magnetics or an authorized distributor for the most up-to-date information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP12-200 Overview

Use the download button to access the FP12-200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP12-, or try a keyword search, such as Power/Mains Transformers
