FP15R12KT3BOSA1 - Infineon

Description: IGBT Module Three Phase Inverter 1200 V 18 A 83.5 W Chassis Mount Module

Download FP15R12KT3BOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

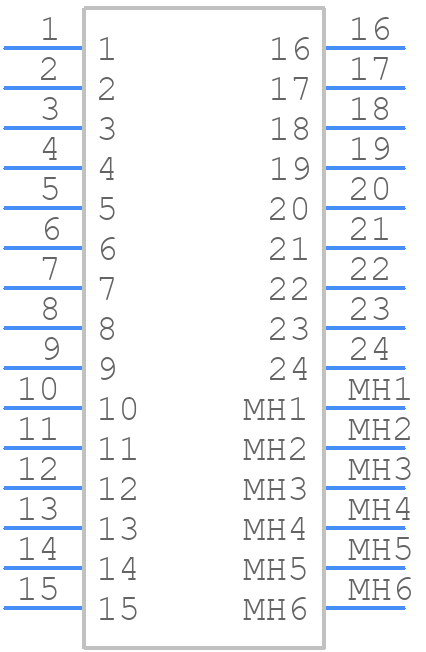

FP15R12KT3BOSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

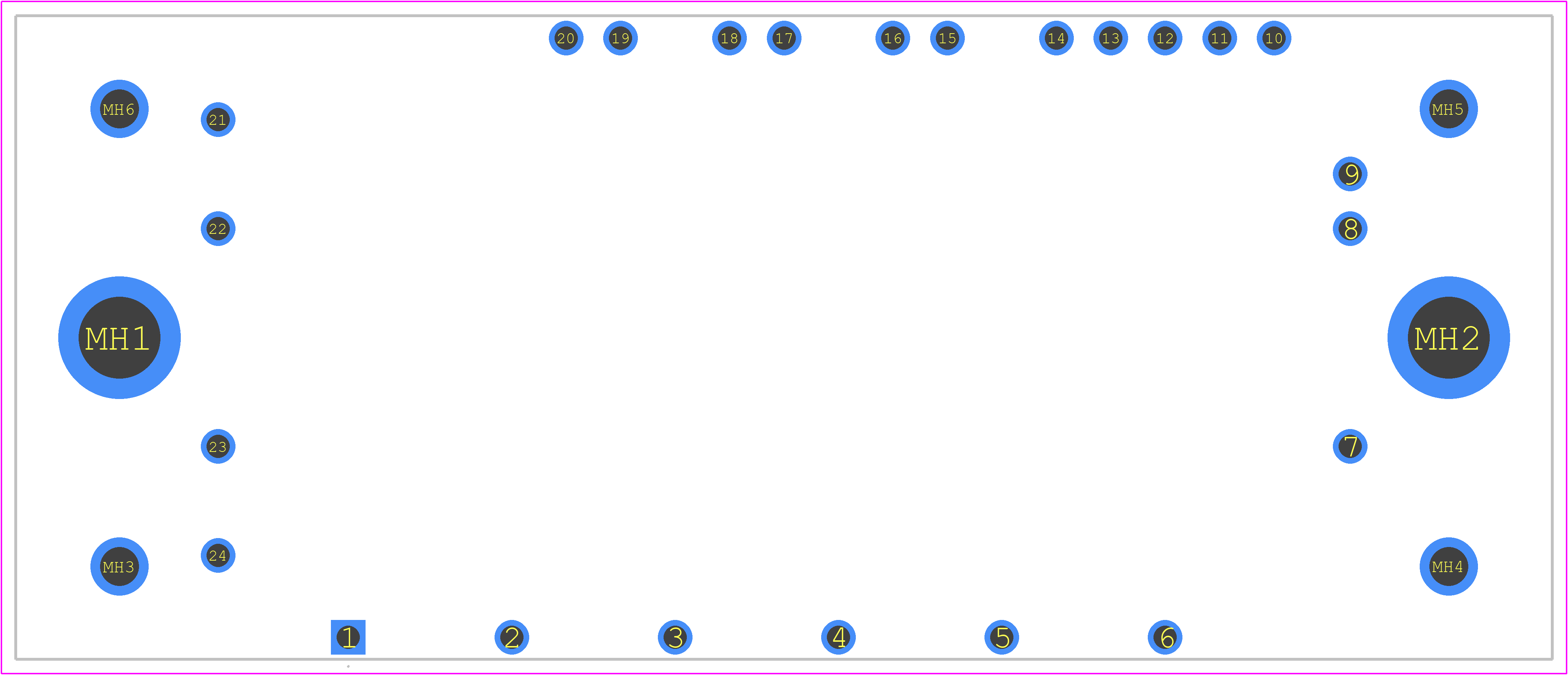

FP15R12KT3BOSA1 - Infineon PCB footprint - Other - Other - FP15R12KT3BOSA1-5
click to zoom
3D Models
FP15R12KT3BOSA1 - Infineon - 3D model - Other - FP15R12KT3BOSA1-5
click to zoom

FP15R12KT3BOSA1 Details

  • Manufacturer Part Number:

    FP15R12KT3BOSA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    2

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    7

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    610 ns

  • Turn-on Time-Nom (ton):

    140 ns

FP15R12KT3BOSA1 Frequently Asked Questions (FAQs)

  • The thermal resistance (Rth) of the FP15R12KT3BOSA1 is typically around 1.5 K/W (junction-to-case) and 3.5 K/W (junction-to-ambient) at a maximum junction temperature of 150°C.
  • Yes, the FP15R12KT3BOSA1 is designed for high-reliability applications, such as automotive and industrial systems, and meets the requirements of AEC-Q101 and IATF 16949 standards.
  • To ensure proper cooling, follow the recommended PCB layout and thermal design guidelines provided in the datasheet, and consider using a heat sink or thermal interface material to reduce thermal resistance.
  • The maximum allowed voltage for the FP15R12KT3BOSA1 is 1200 V, with a maximum repetitive peak voltage of 1300 V.
  • Yes, the FP15R12KT3BOSA1 is designed for high-frequency applications up to 100 kHz, with a low switching loss and high efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP15R12KT3BOSA1 Overview

Use the download button to access the FP15R12KT3BOSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP15R, or try a keyword search, such as IGBTs
