FP25R12KE3BOSA1 - Infineon

Description: IGBT Module Trench Field Stop Three Phase Inverter 1200 V 40 A 155 W Chassis Mount Module

Download FP25R12KE3BOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

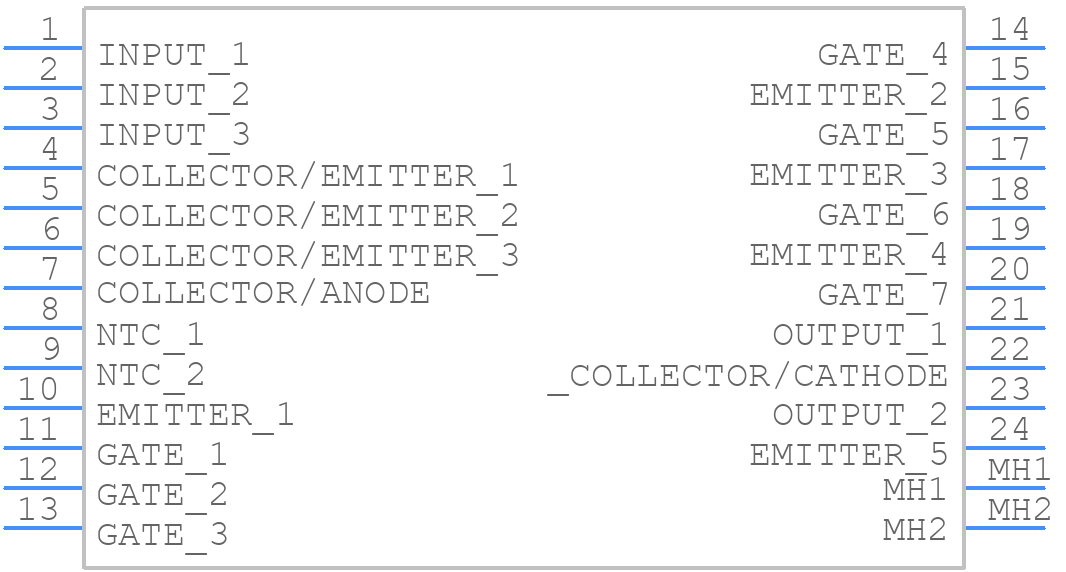

FP25R12KE3BOSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

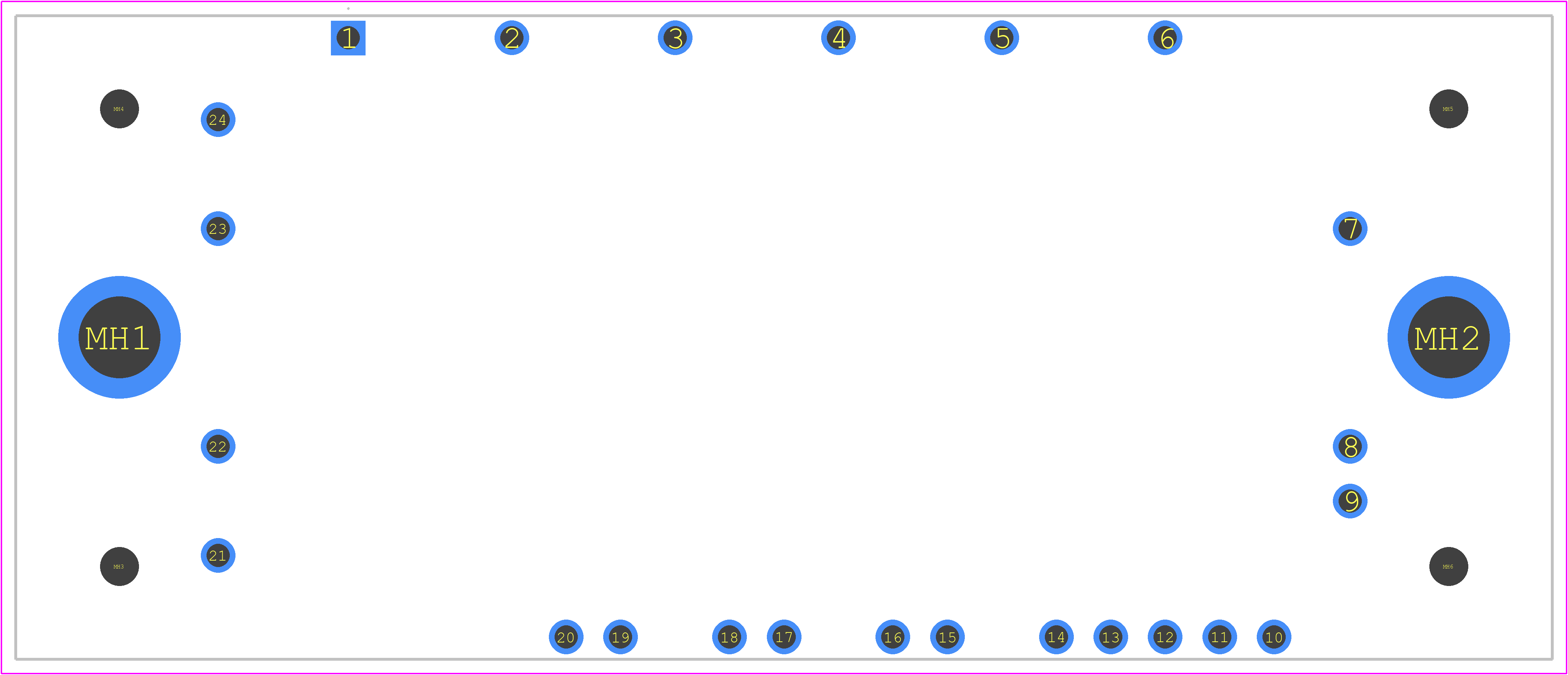

FP25R12KE3BOSA1 - Infineon PCB footprint - Other - Other - FP25R12KE3BOSA1-2
click to zoom
3D Models
FP25R12KE3BOSA1 - Infineon - 3D model - Other - FP25R12KE3BOSA1-2
click to zoom

FP25R12KE3BOSA1 Details

  • Manufacturer Part Number:

    FP25R12KE3BOSA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    2

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    40 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    7

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    610 ns

  • Turn-on Time-Nom (ton):

    135 ns

FP25R12KE3BOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FP25R12KE3BOSA1 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The recommended gate drive voltage for the FP25R12KE3BOSA1 is between 10V and 15V, with a maximum voltage of 20V.
  • Yes, the FP25R12KE3BOSA1 can be used in a parallel configuration to increase current handling, but it's essential to ensure proper synchronization and thermal management to avoid uneven current distribution.
  • The maximum allowable voltage transient for the FP25R12KE3BOSA1 is 30V, with a maximum duration of 100ms.
