FP25R12W1T7B11BPSA1 - Infineon

Description: IGBT Module Trench Field Stop Three Phase Inverter 1200 V 25 A 20 mW Chassis Mount AG-EASY1B-2

Download FP25R12W1T7B11BPSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

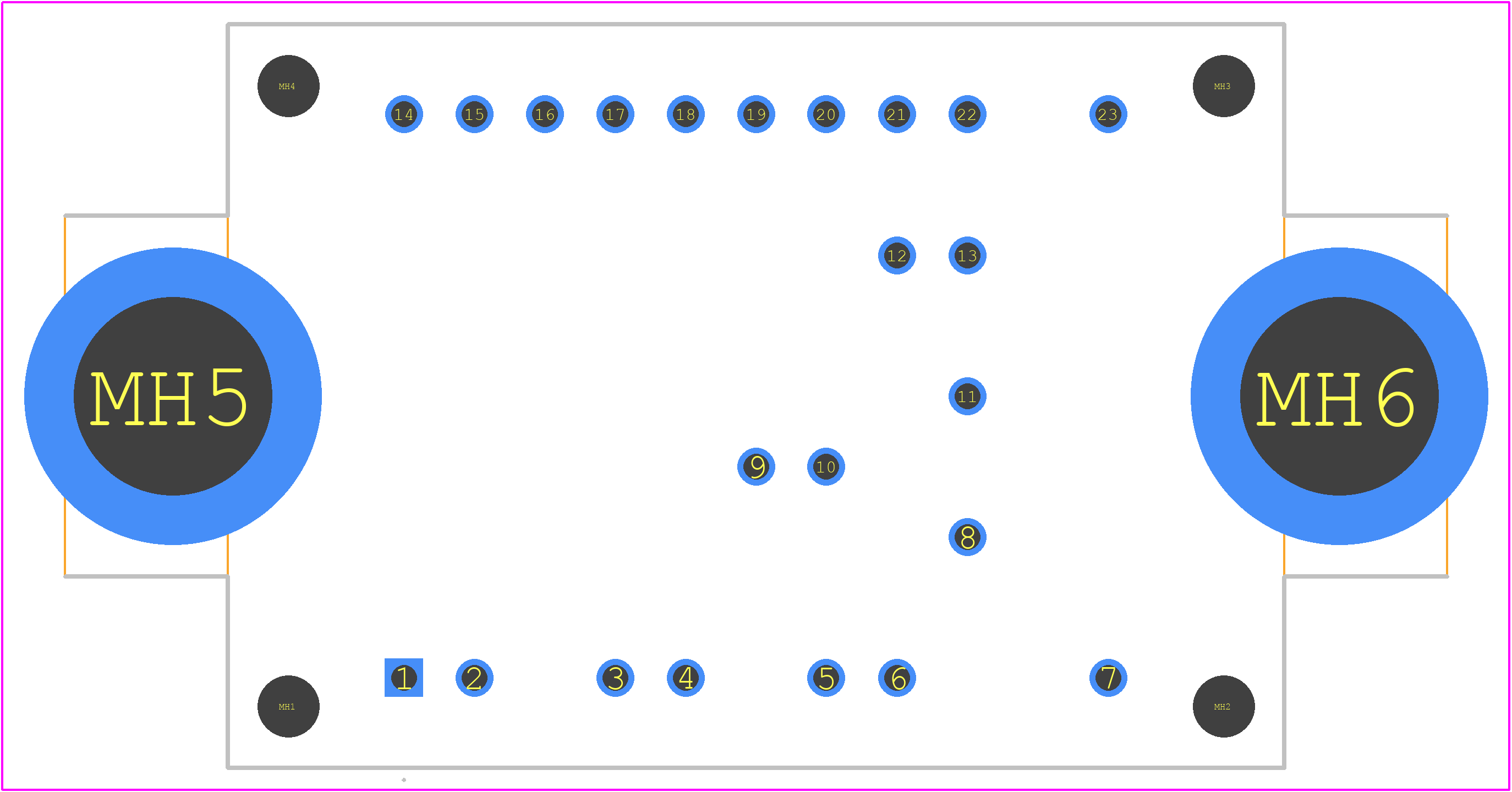

FP25R12W1T7B11BPSA1 - Infineon PCB footprint - Other - Other - FP25R12W1T7B11BPSA1-4
click to zoom

FP25R12W1T7B11BPSA1 Details

  • Manufacturer Part Number:

    FP25R12W1T7B11BPSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Mainland China, Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    6.45 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X23

  • Number of Elements:

    7

  • Number of Terminals:

    23

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    730 ns

  • Turn-on Time-Nom (ton):

    65 ns

FP25R12W1T7B11BPSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FP25R12W1T7B11BPSA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for the FP25R12W1T7B11BPSA1 is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, the FP25R12W1T7B11BPSA1 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • Overvoltage protection can be achieved using a voltage clamp or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
