FP30-200 footprint, schematic symbol and 3D model by Triad Magnetics

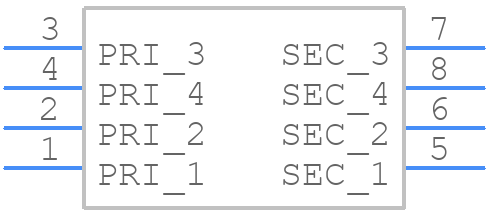

Symbol

click to zoom

PCB Footprints

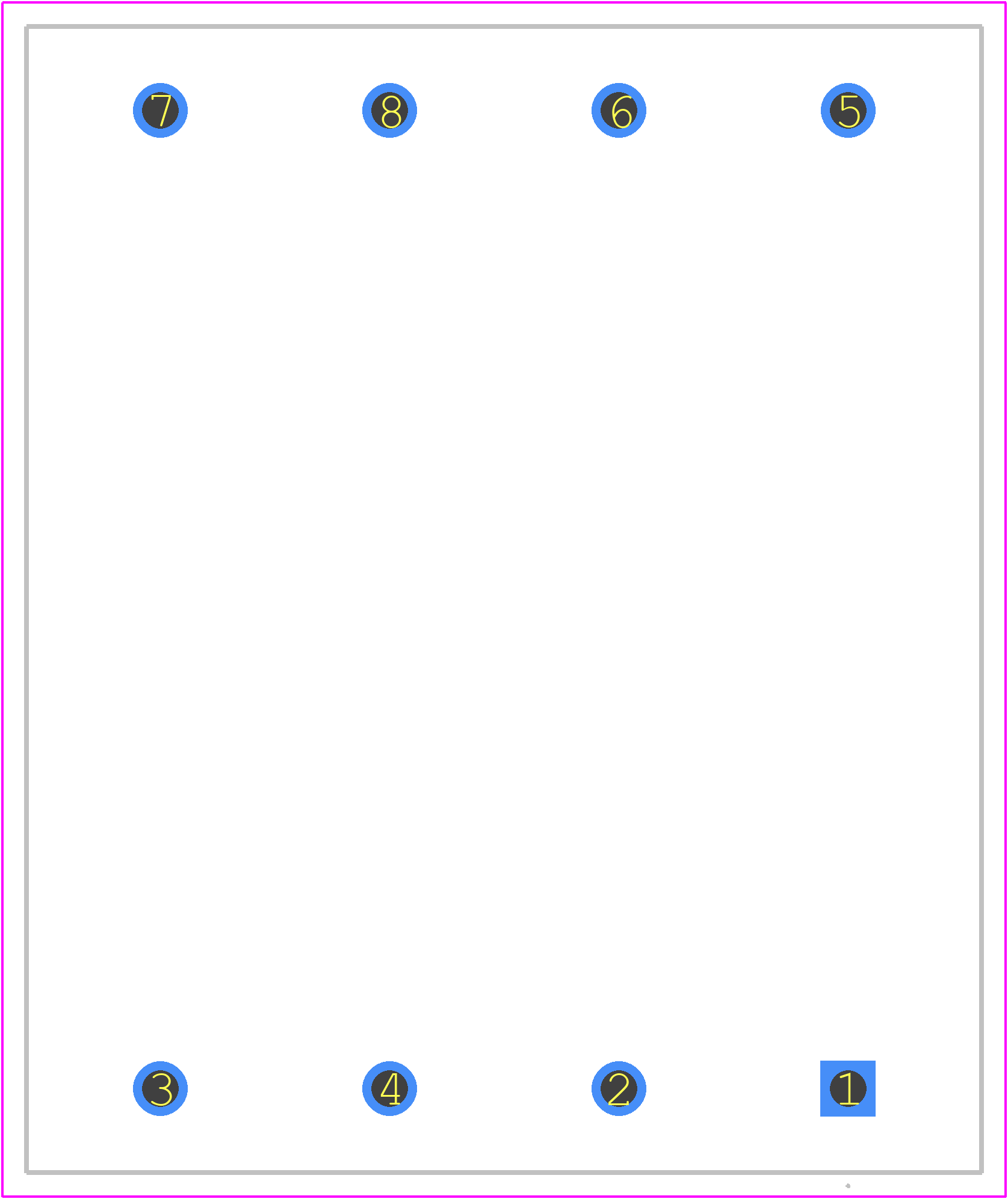

FP30-200 - Triad Magnetics PCB footprint - Other - Other - FP30-200-1

click to zoom

3D Models

FP30-200 - Triad Magnetics - 3D model - Other - FP30-200-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FP30-200
Part Number FP30-200
Manufacturer Triad Magnetics
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FP30-200-1
Released Date Feb 1, 2022
Last Modified Date Oct 23, 2024 3:58 AM UTC
Pinout / Pin List Click Here (Member Only)

FP30-200 Details

Manufacturer Part Number:
FP30-200
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Additional Feature:
PCB MOUNTABLE
Application:
POWER
Approvals:
UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
22.22 mm
Isolation Voltage:
2000 V
Length:
47.62 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Primary Winding:
2
Number of Secondary Winding:
2
Output Current 1:
0.4 A
Output Current 2:
0.4 A
Output Voltage 1:
15 V
Output Voltage 2:
15 V
Primary Rating:
DUAL 115/230V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
6 VA
Width:
39.67 mm

FP30-200 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the FP30-200 is -40°C to 130°C, with a maximum storage temperature of 150°C.
Yes, the FP30-200 is designed for high-voltage applications and can withstand up to 2000 VRMS between primary and secondary windings.
The maximum power rating for the FP30-200 is 30VA, with a maximum current rating of 200mA.
Yes, the FP30-200 is suitable for use in switching power supplies due to its low leakage inductance and high frequency capability.
The pinout configuration for the FP30-200 is 6-pin, with the primary winding connected to pins 1 and 2, and the secondary winding connected to pins 3 and 4. Pins 5 and 6 are not connected.

Trust Checks

Community Provided

System Verified

Community Approved

FP30-200 Overview

Use the download button to access the FP30-200 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FP30-, or try a keyword search, such as Power/Mains Transformers
