FP50R06W2E3_B11 - Infineon

Description: Infineon FP50R06W2E3_B11, IGBT Module, 3 Phase, 65 A max, 600 V, 35-Pin EASY2B

Download FP50R06W2E3_B11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

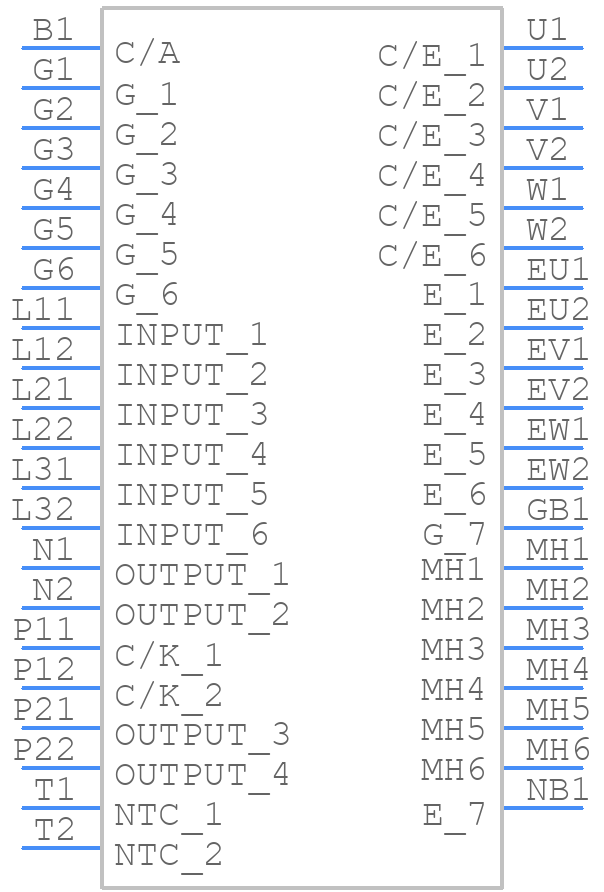

Symbol
FP50R06W2E3_B11 - Infineon - PCB symbol
click to zoom

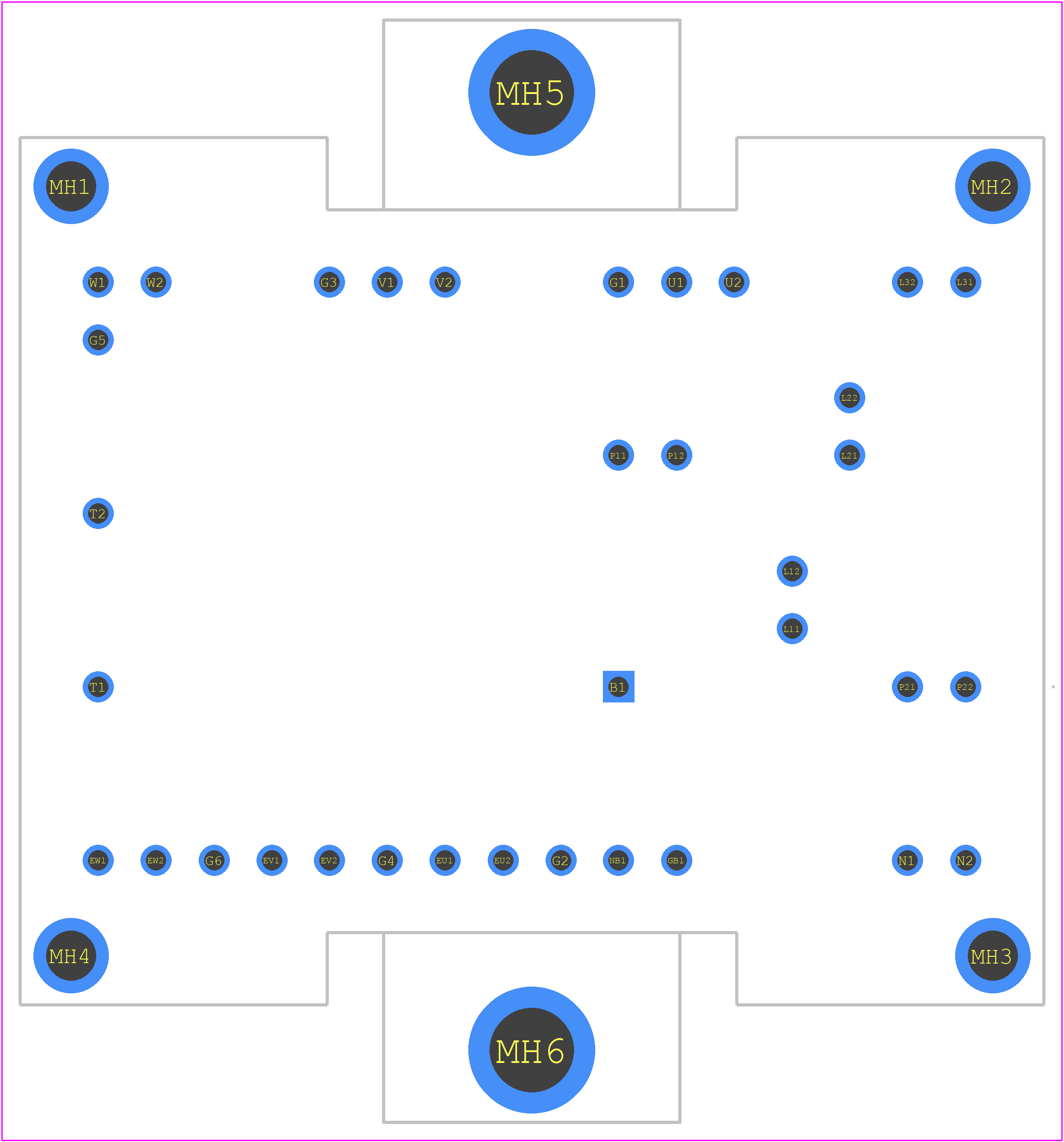

PCB Footprints
FP50R06W2E3_B11 - Infineon PCB footprint - Other - Other - FP50R06W2E3_B11
click to zoom

FP50R06W2E3_B11 Details

  • Manufacturer Part Number:

    FP50R06W2E3_B11

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    35

  • Country Of Origin:

    Germany, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

FP50R06W2E3_B11 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FP50R06W2E3_B11 is -40°C to 150°C.
  • To ensure reliability, follow the recommended thermal management guidelines, such as using a heat sink, and ensure the device is operated within the specified thermal boundaries.
  • The recommended gate resistor value for the FP50R06W2E3_B11 is typically in the range of 10 Ω to 100 Ω, depending on the specific application and switching frequency.
  • Yes, the FP50R06W2E3_B11 is suitable for high-frequency switching applications up to 100 kHz, but ensure the device is operated within the specified switching frequency and voltage ratings.
  • Use a suitable overvoltage protection circuit, such as a TVS diode or a zener diode, and implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP50R06W2E3_B11 Overview

Use the download button to access the FP50R06W2E3_B11 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FP50R, or try a keyword search, such as IGBTs
