FP50R12KT4B11BPSA1 footprint, schematic symbol and 3D model by Infineon

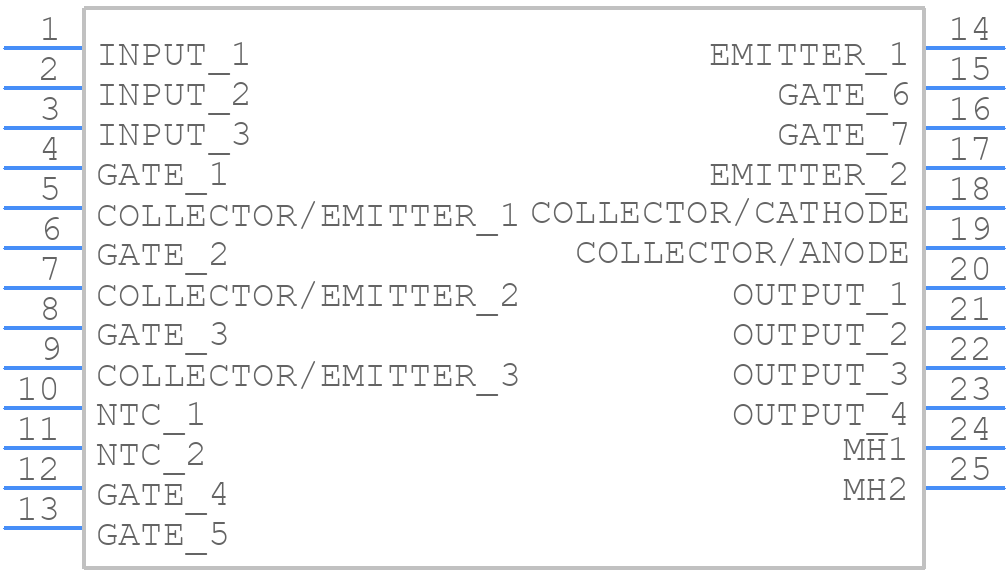

Symbol

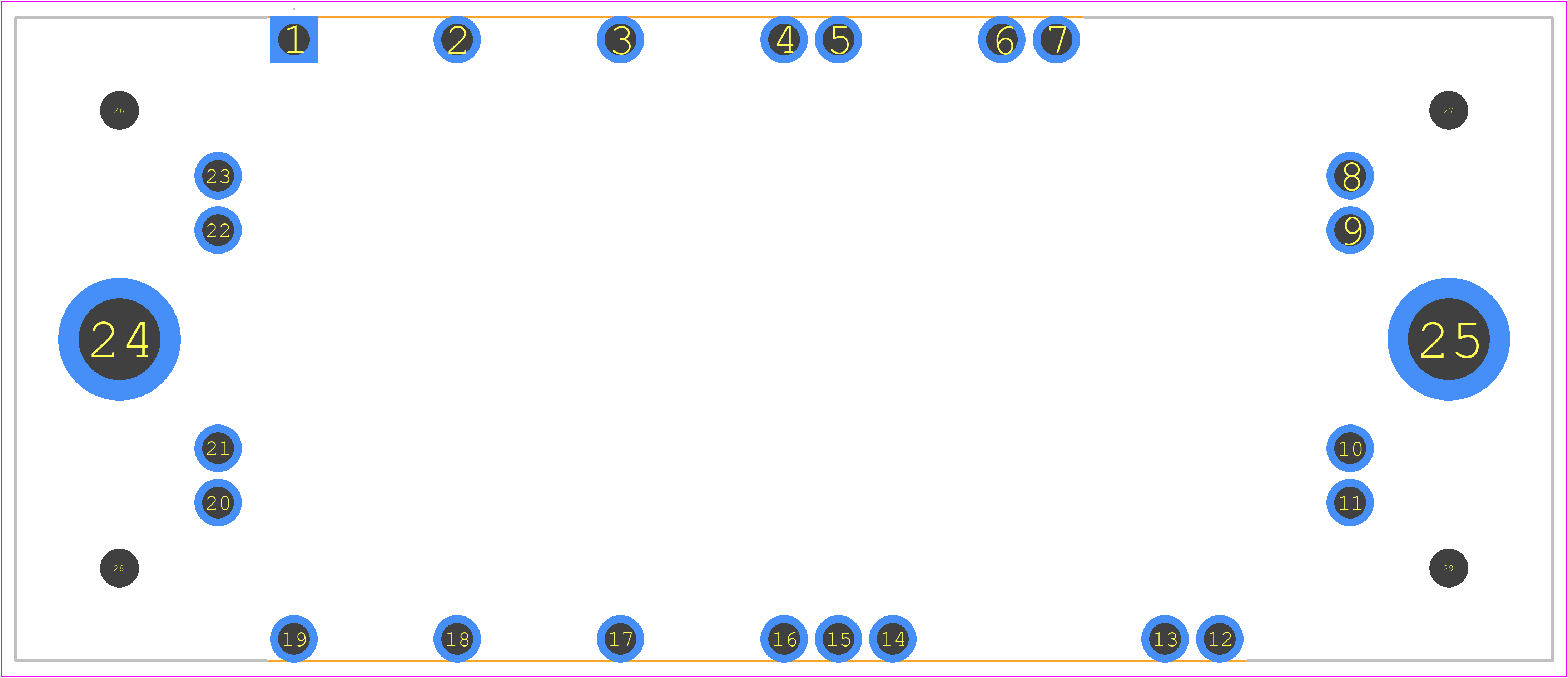

PCB Footprints

3D Models

FP50R12KT4B11BPSA1 Details

The thermal resistance (Rth) of the FP50R12KT4B11BPSA1 is typically around 0.35 K/W (junction to case) and 1.5 K/W (junction to ambient) with a heatsink.
Yes, the FP50R12KT4B11BPSA1 is suitable for high-frequency applications up to 100 kHz due to its low switching losses and fast switching times.
To ensure reliability, follow the recommended operating temperature range (TJ) of -40°C to 150°C, and consider using a thermal management system, such as a heatsink or cooling fan, to keep the junction temperature below 125°C.
The recommended gate resistor value for the FP50R12KT4B11BPSA1 is typically between 10 Ω and 20 Ω, depending on the specific application and switching frequency.
Yes, the FP50R12KT4B11BPSA1 can be used in a parallel configuration to increase the overall current handling capability, but it's essential to ensure proper synchronization and gate drive circuitry to avoid uneven current distribution.

Community Provided

System Verified

Community Approved

Use the download button to access the FP50R12KT4B11BPSA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FP50R, or try a keyword search, such as IGBTs
