FP75R12KT4 - Infineon

Description: 1200 V, 75 A PIM three phase input rectifier IGBT module

Download FP75R12KT4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

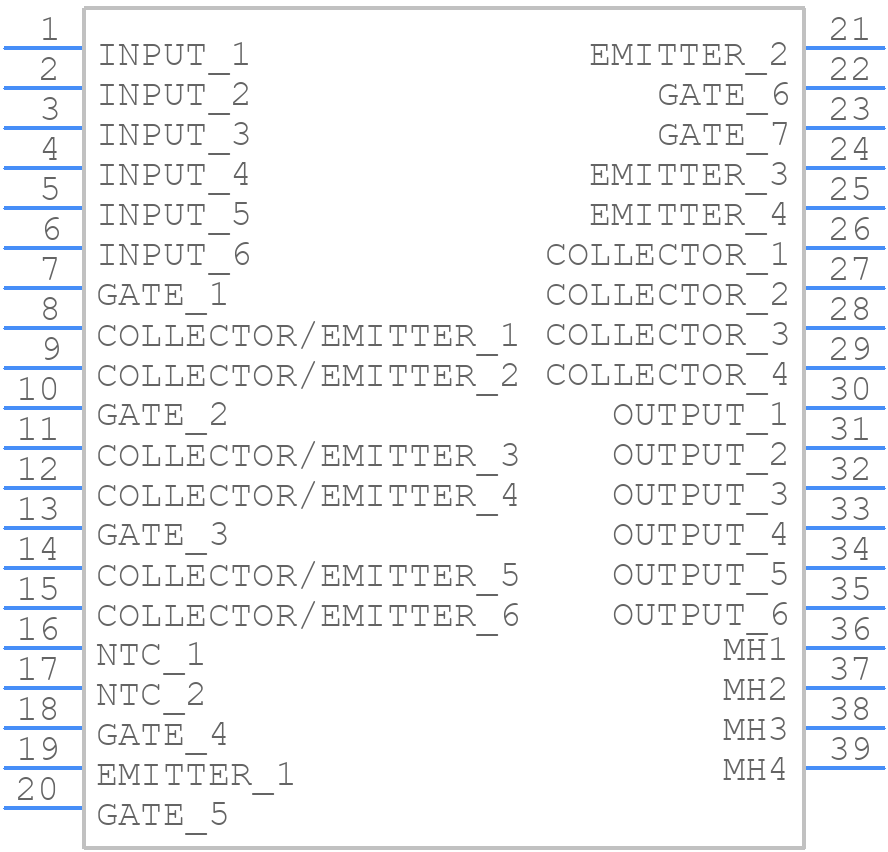

Symbol
FP75R12KT4 - Infineon - PCB symbol
click to zoom

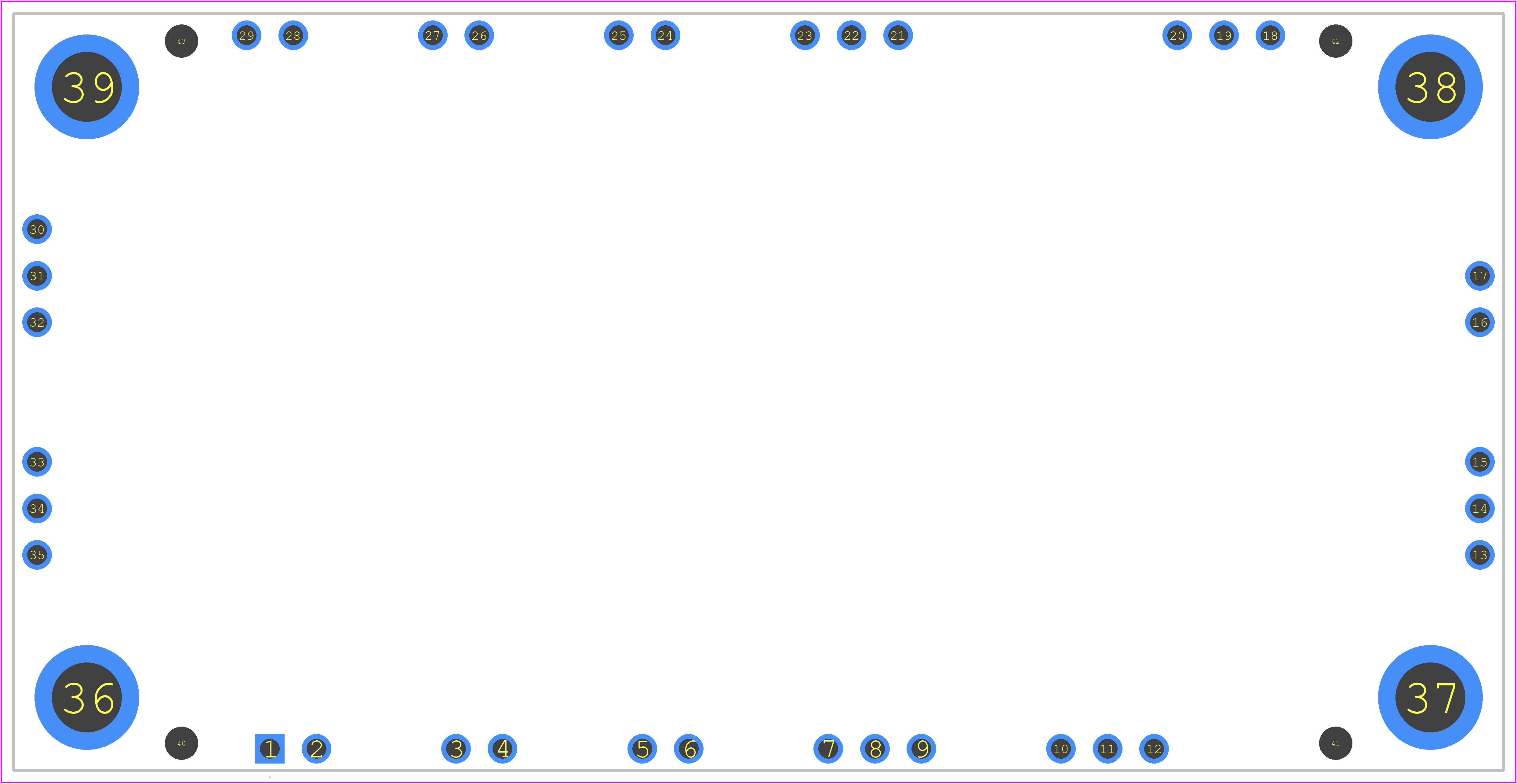

PCB Footprints
FP75R12KT4 - Infineon PCB footprint - Other - Other - FP75R12KT4-2
click to zoom
3D Models
FP75R12KT4 - Infineon - 3D model - Other - FP75R12KT4-2
click to zoom

FP75R12KT4 Details

  • Manufacturer Part Number:

    FP75R12KT4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    75 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    7

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    385 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    620 ns

  • Turn-on Time-Nom (ton):

    210 ns

  • VCEsat-Max:

    2.25 V

FP75R12KT4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FP75R12KT4 is -40°C to 150°C.
  • To ensure reliability, it is recommended to follow the thermal design guidelines provided by Infineon, and to implement proper thermal management, such as heat sinks and thermal interfaces, to keep the junction temperature within the recommended range.
  • The recommended gate resistor value for the FP75R12KT4 is typically in the range of 10 ohms to 100 ohms, depending on the specific application and switching frequency.
  • To protect the FP75R12KT4 from overvoltage and overcurrent, it is recommended to implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits, such as TVS diodes and current sense resistors, in the application design.
  • The recommended PCB layout for the FP75R12KT4 involves keeping the power loops as small as possible, using a solid ground plane, and minimizing the distance between the MOSFET and the driver circuitry.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP75R12KT4 Overview

Use the download button to access the FP75R12KT4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP75R, or try a keyword search, such as IGBTs
