FPAM50LH60G - onsemi

Description: ON Semiconductor FPAM50LH60G, Power Factor Correction, 20 kHz, 253 Vrms 32-Pin, S32EA

Download FPAM50LH60G Model

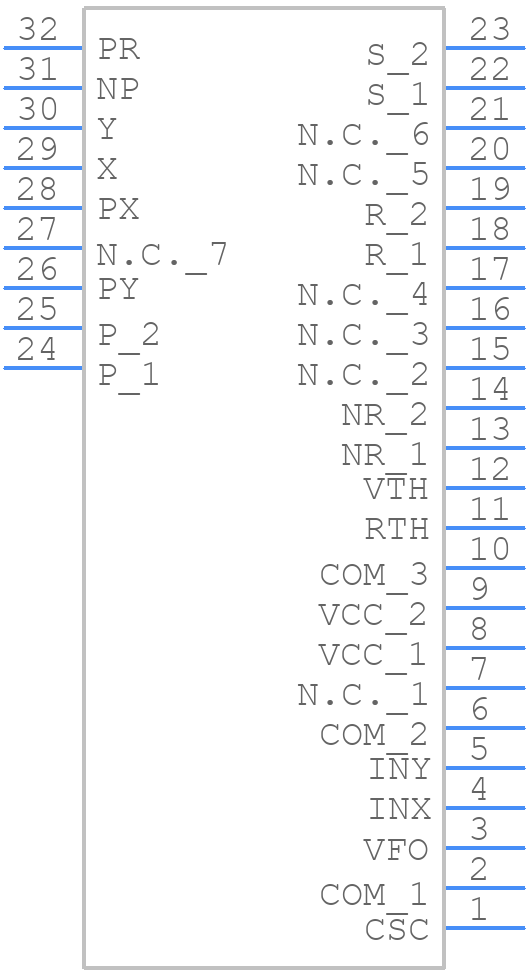

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

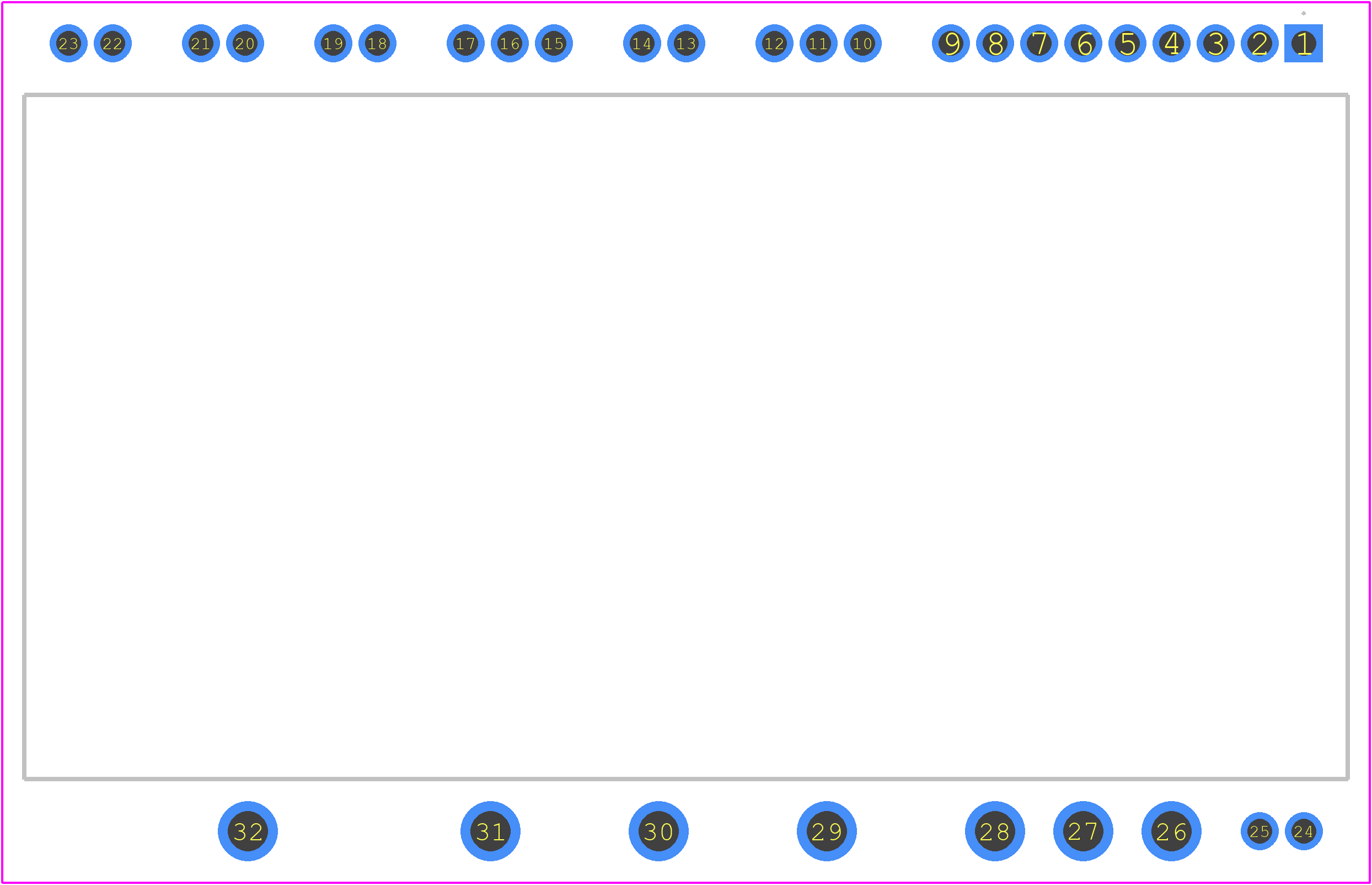

PCB Footprints
FPAM50LH60G - onsemi PCB footprint - Other - Other - S32EA-032
click to zoom
3D Models
FPAM50LH60G - onsemi  - 3D model - Other - S32EA-032
click to zoom

FPAM50LH60G Details

  • Manufacturer Part Number:

    FPAM50LH60G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-32

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XDMA-T32

  • JESD-609 Code:

    e3

  • Length:

    60 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,32LEAD,1.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    8.1 mm

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    31 mm

FPAM50LH60G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a heat sink or a thermal management system.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Proper thermal management, such as heat sinking and airflow, is also crucial. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • The high voltage rating of the FPAM50LH60G requires careful consideration in the PCB design. Ensure that the PCB material and layout can withstand the high voltage, and use adequate creepage and clearance distances between conductors. Also, consider using a PCB with a high voltage rating and follow the recommended PCB stack-up and material selection guidelines.
  • When selecting a gate driver for the FPAM50LH60G, consider the device's gate charge, voltage rating, and switching frequency requirements. Choose a gate driver that can provide the necessary gate current, voltage, and switching speed. Also, ensure that the gate driver is compatible with the device's gate-source voltage and has a suitable input/output interface.
  • The FPAM50LH60G is a high-power device that can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, use proper shielding, grounding, and filtering techniques in the PCB design. Also, consider using a snubber circuit or a common-mode choke to reduce EMI and RFI emissions.
