A good PCB layout for the FPF1008 involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with ceramic capacitors.
The FPF1008 can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 12V to 40V for optimal performance and reliability.
The FPF1008 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability. It's also important to ensure good thermal design and heat sinking to prevent overheating.
To troubleshoot issues with the FPF1008, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, check the PCB layout and component values to ensure they match the recommended design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF1008 Overview

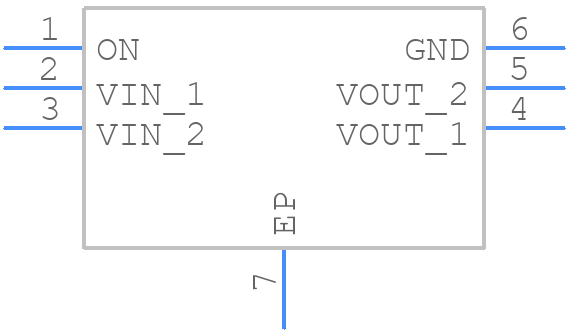

Use the download button to access the FPF1008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF10,
or try a keyword search, such as Power Management Circuits
