Current Limit:1.5A;Thermal Shutdown:140C;Adjustable Current Limit
Adjustable Threshold:
YES
Analog IC - Other Type:
Load switch
JESD-30 Code:
S-PDSO-N6
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+1.65V
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
FPF2165R Frequently Asked Questions (FAQs)
A good PCB layout for the FPF2165R involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
To ensure stability, make sure the output capacitor is properly selected, the input voltage is within the recommended range, and the device is operated within the recommended frequency range. Additionally, a minimum ESR (Equivalent Series Resistance) of 10mΩ for the output capacitor is recommended.
The FPF2165R can handle a maximum input voltage of 18V, but it's recommended to operate it within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
The FPF2165R is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation.
The output voltage of the FPF2165R can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage (typically 0.8V).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF2165R Overview

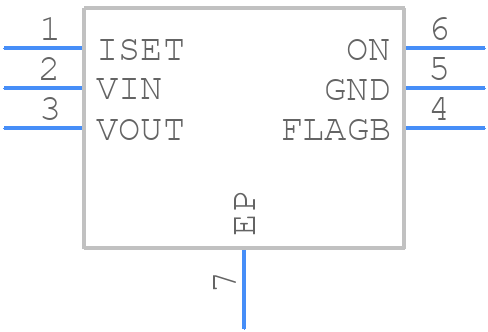

Use the download button to access the FPF2165R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF21,
or try a keyword search, such as Power Management Circuits
