FPF2188LUCX - onsemi

Description: Always ON LDO Output, BUS_DET; 200 V Surge Protection at VBUS under IEC 61000−4−5; Hot Plug Max = 28 V; Low ON−Resistance: Typical 9 m? at 5 V / 25°C

Download FPF2188LUCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

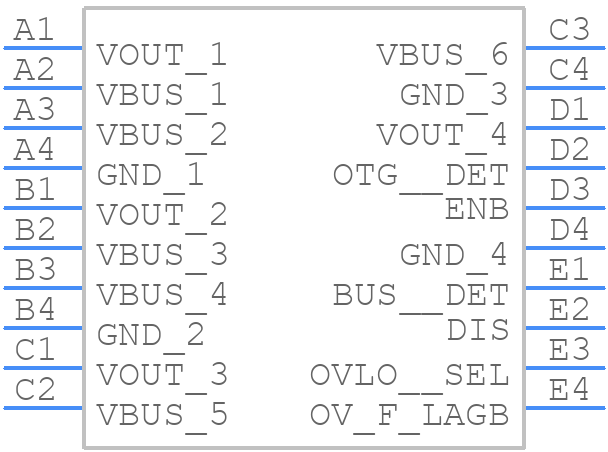

Symbol
FPF2188LUCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FPF2188LUCX - onsemi PCB footprint - BGA - BGA - WLCSP20 1.88x2.34x0.32, 0.40P CASE 567US ISSUE B
click to zoom
3D Models
FPF2188LUCX - onsemi - 3D model - BGA - WLCSP20 1.88x2.34x0.32, 0.40P CASE 567US ISSUE B
click to zoom

FPF2188LUCX Details

  • Manufacturer Part Number:

    FPF2188LUCX

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    LOAD SWITCH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FPF2188LUCX Overview

Use the download button to access the FPF2188LUCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF21, or try a keyword search, such as Power Management Circuits
