The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings, and use a stable voltage source. Also, ensure that the input and output capacitors are properly selected and placed close to the device.
The maximum operating temperature range for the FPF2411BUCX-F130 is -40°C to 150°C. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
To handle ESD protection for the FPF2411BUCX-F130, follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits on the PCB, such as TVS diodes or ESD protection arrays.
The recommended soldering profile for the FPF2411BUCX-F130 involves a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's also recommended to use a soldering iron with a temperature range of 200-240°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF2411BUCX-F130 Overview

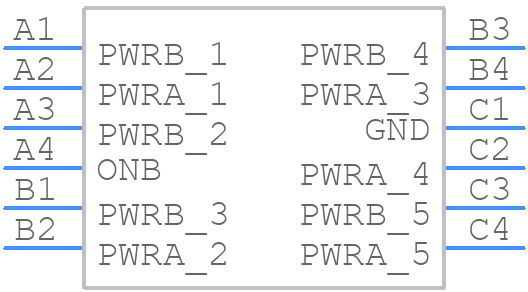

Use the download button to access the FPF2411BUCX-F130 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF24,
or try a keyword search, such as Power Management Circuits
