FPF2496UCX - onsemi

Description: Logic CMOS IO Meets JESD76 Standard for GPIO Interface and Related Power Supply Requirements; Output Discharge During Off State; Open-Drain OVP on FLAGB; VIN: 3.5 V~5.5 V; Thermal Shutdown; Adjustable Current Limit: (Typ.) 0.1 A~2.5 A with 10% Accuracy ; True Reverse-Current Blocking (TRCB); Input OVP: Min.=5.6 V, Typ.=5.8 V, Max.=6 V; RON: Maximum 100 mΩ at 5 VIN and 1 A IOUT; Current Capability: 2.5 A; 28 V Absolute Ratings at VIN; Under-Voltage Lockout (UVLO)

Download FPF2496UCX Model

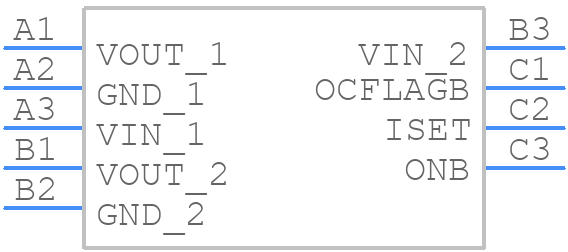

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FPF2496UCX - onsemi PCB footprint - BGA - BGA - FPF2496
click to zoom
3D Models
FPF2496UCX - onsemi  - 3D model - BGA - FPF2496
click to zoom

FPF2496UCX Details

  • Manufacturer Part Number:

    FPF2496UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-9

  • Package Description:

    WLCSP-9

  • Manufacturer Package Code:

    567RV

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Additional Feature:

    ALSO OPERATES WITH SUPPLY VOLTAGE 2.5 TO 5.5V

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.21 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.21 mm

FPF2496UCX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Monitor the input voltage, output voltage, and current to ensure they are within the specified ranges. Also, ensure the device is operated within the recommended temperature range (-40°C to 125°C).
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 4.7 μF to 10 μF is recommended for the input capacitor.
  • Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke or ferrite bead to filter the output.
  • The maximum allowed output capacitance is 220 μF. Exceeding this value may cause instability or oscillations.
