A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
The device requires a stable input voltage (VIN) and a proper bias voltage (VBIAS) to operate correctly. Ensure VIN is within the recommended range (2.7V to 5.5V) and VBIAS is set to 1.2V to 1.8V.
The maximum current rating for the FPF2700MX is 2A. However, it's recommended to operate the device within the recommended operating current range (0.5A to 1.5A) for optimal performance and reliability.
The FPF2700MX requires a specific power sequencing to prevent damage. Ensure that VIN is applied before VBIAS, and VBIAS is removed before VIN during power-down.
The FPF2700MX has a maximum junction temperature (TJ) of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating, which can affect device performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF2700MX Overview

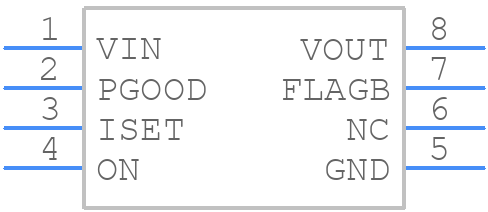

Use the download button to access the FPF2700MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF27,
or try a keyword search, such as Peripheral Drivers
