Part Image

FPF2895UCX - onsemi

Description: 23 V ± 460 mV; Current Source Mode; Wide Input Voltage Range: 4 V ~ 22 V; 14 V ± 280 mV; Open Drain Fault FLAGB Output; "28 V / 5 A Capability; Ultra Low On-Resistance; Typ. 27 mΩ at 5 V and 25 °C ; Adjustable Current Limit with external RSET; 500 mA ~ 5 A; Selectable OVLO with OV1 and OV2 Logic Input; 5.95 V ± 50 mV; 10 V ± 100 mV; Selectable ON Polarity; Selectable Over-Current Behavior; Auto-Restart Mode; True Reverse Current Block; Open Drain Fault FLAGB Output"; Thermal Shutdown

Download FPF2895UCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

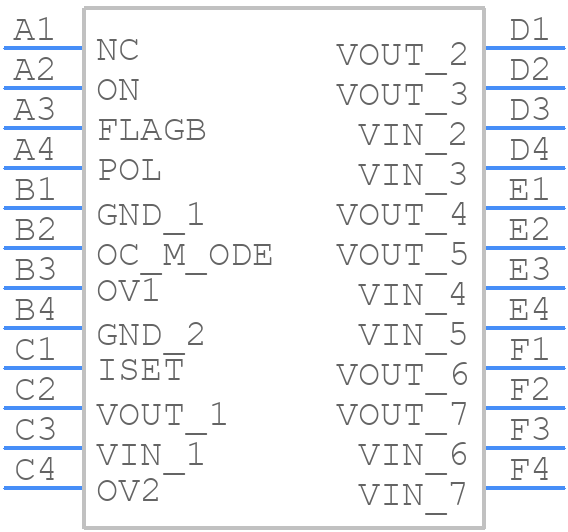

FPF2895UCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FPF2895UCX - onsemi PCB footprint - BGA - BGA - 24-Ball, 0.4 mm Pitch WLCSP
click to zoom
3D Models
FPF2895UCX - onsemi - 3D model - BGA - 24-Ball, 0.4 mm Pitch WLCSP
click to zoom

FPF2895UCX Details

  • Manufacturer Part Number:

    FPF2895UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-24

  • Manufacturer Package Code:

    567TQ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    30

FPF2895UCX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer between the device and heat sink.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, but ensure that the device is properly heatsinked and the current rating is not exceeded. The device can handle high currents, but thermal management is crucial to prevent overheating.
  • Check the input voltage, output voltage, and current. Verify that the device is properly configured and that the PCB layout is correct. Use an oscilloscope to check for voltage and current waveforms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FPF2895UCX Overview

Use the download button to access the FPF2895UCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF28, or try a keyword search, such as Power Management Circuits
