The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane, placing thermal vias under the device, and using a thermal pad on the bottom of the package. Additionally, keeping the PCB traces away from the device and using a heat sink can help to improve thermal performance.
To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Proper thermal design, including heat sinking and thermal management, is also crucial. Furthermore, ensuring that the device is operated within the specified voltage and current ranges can help to prevent overheating and ensure reliable operation.
Key considerations for EMI and RFI mitigation when using the FPF3381UCX include using a shielded enclosure, keeping the device and PCB traces away from antennas and other EMI-sensitive components, and using EMI filters or chokes on the input and output lines. Additionally, following proper PCB layout and grounding techniques can help to reduce EMI and RFI emissions.
To troubleshoot issues with the device not turning on or not regulating properly, check the input voltage and ensure it is within the specified range. Verify that the enable pin is properly biased and that the output voltage is not overloaded. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for further guidance.
Operating the device at a lower input voltage than recommended can result in reduced output voltage regulation, increased output voltage ripple, and decreased efficiency. It may also lead to increased dropout voltage, which can affect the overall system performance. It is essential to ensure that the input voltage is within the specified range to guarantee optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF3381UCX Overview

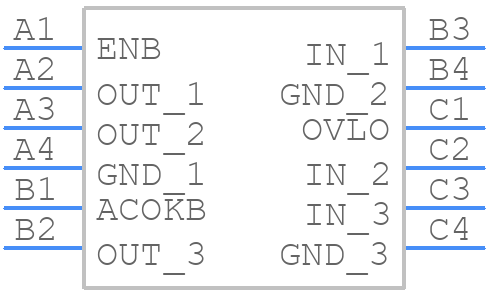

Use the download button to access the FPF3381UCX schematic symbol, PCB footprint, and 3D model.
