The maximum SOA for the FQP13N06L is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A safe operating area can be assumed to be around 10A and 30V.
To ensure the FQP13N06L is fully turned on, the gate-source voltage (Vgs) should be at least 10V, and the gate current should be sufficient to charge the gate capacitance quickly. A gate resistor value of around 1kΩ to 10kΩ is recommended.
The maximum allowed Vds for the FQP13N06L is 60V, as specified in the datasheet. However, it's recommended to derate the voltage to around 50V to ensure reliable operation and minimize the risk of avalanche breakdown.
Thermal management is crucial for the FQP13N06L. Ensure good heat sinking, use a thermal interface material, and consider using a heat sink with a thermal resistance of around 10°C/W or lower. Monitor the junction temperature and adjust the design accordingly.
Yes, the FQP13N06L can be used in high-frequency switching applications, but be aware of the device's switching characteristics, such as the rise and fall times, and ensure that the gate drive is sufficient to minimize switching losses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FQP13N06L Overview

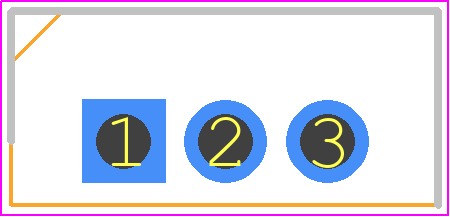

Use the download button to access the FQP13N06L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FQP13,
or try a keyword search, such as Power Field-Effect Transistors
