Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FRM50SJT-52-1R
- Part Number FRM50SJT-52-1R
- Manufacturer Yageo Group
- Pin Count 2
- Part Category Resistor
- Package Category Resistors, Axial Diameter Horizontal Mounting

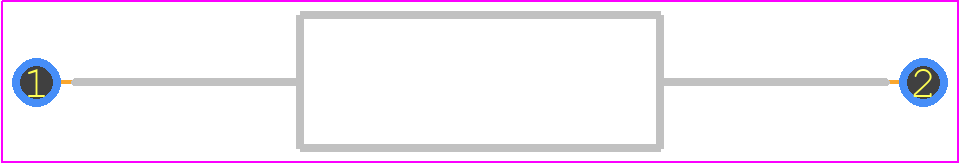

- Footprint Name Resistors, Axial Diameter Horizontal Mounting - MFR-50-
- Released Date Jan 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FRM50SJT-52-1R Details
-
Manufacturer Part Number:
FRM50SJT-52-1R
-
Manufacturer:
YAGEO Corporation
Trust Checks
Community Provided
System Verified
Community Approved
FRM50SJT-52-1R Overview
Use the download button to access the FRM50SJT-52-1R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FRM50,
or try a keyword search, such as Metal Film Resistors
