FS100R06KE3 - Infineon

Description: IGBT Modules ECONO PACK 3 WITH FAST TRENCH

Download FS100R06KE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

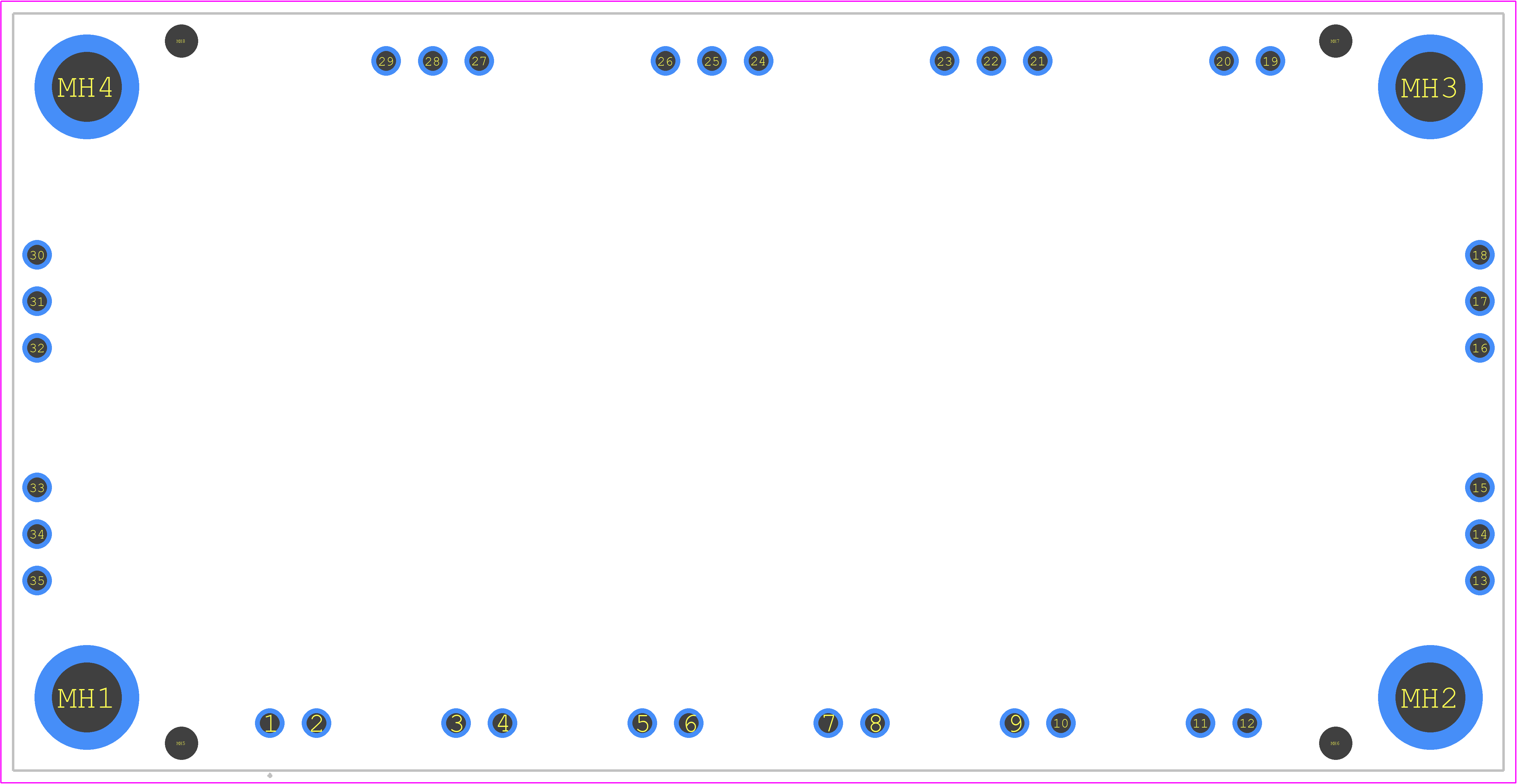

FS100R06KE3 - Infineon PCB footprint - Other - Other - FS100R06KE3-2
click to zoom
3D Models
FS100R06KE3 - Infineon  - 3D model - Other - FS100R06KE3-2
click to zoom

FS100R06KE3 Details

  • Manufacturer Part Number:

    FS100R06KE3

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

FS100R06KE3 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) of the FS100R06KE3 is 175°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling of the FS100R06KE3 is crucial to prevent overheating. Ensure good thermal contact between the device and the heat sink, and use a heat sink with a sufficient thermal conductivity. Additionally, consider using a thermal interface material (TIM) to fill any gaps between the device and the heat sink.
  • The recommended gate drive voltage for the FS100R06KE3 is between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the FS100R06KE3 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching losses, gate charge, and parasitic inductances when designing the circuit. Additionally, ensure that the device is properly cooled and the PCB layout is optimized for high-frequency operation.
  • To protect the FS100R06KE3 from overvoltage and overcurrent, consider using a voltage clamp or a surge protector to limit the voltage across the device. Additionally, implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
