FS100R07N2E4_B11 - Infineon

Description: Infineon FS100R07N2E4_B11, IGBT Module, 3 Phase, 100 A max, 650 V, 25-Pin Econo2

Download FS100R07N2E4_B11 Model

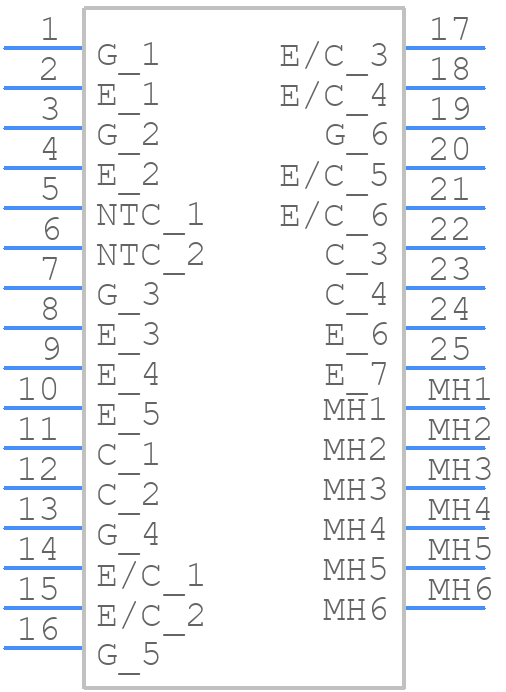

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

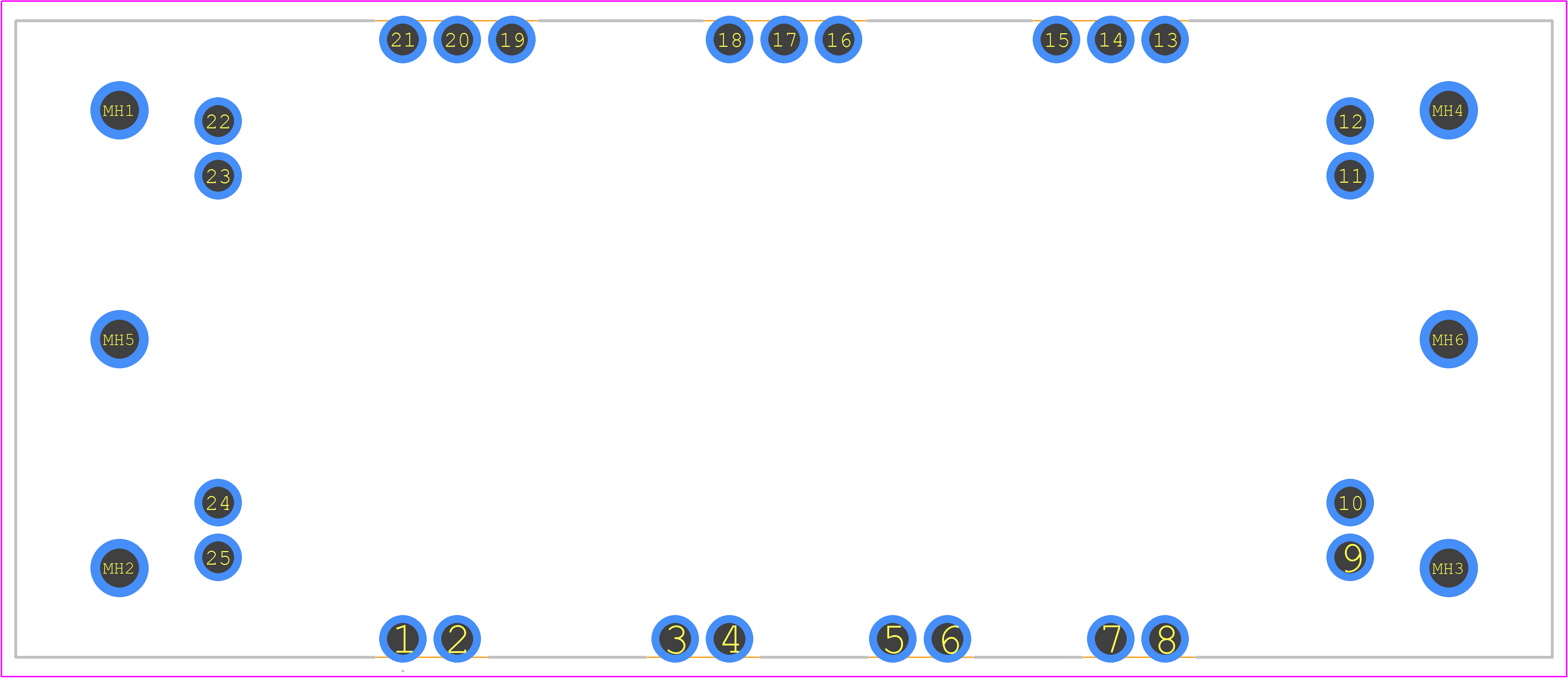

PCB Footprints
FS100R07N2E4_B11 - Infineon PCB footprint - Other - Other - FS100R07N2E4_B11-1
click to zoom
3D Models
FS100R07N2E4_B11 - Infineon  - 3D model - Other - FS100R07N2E4_B11-1
click to zoom

FS100R07N2E4_B11 Details

  • Manufacturer Part Number:

    FS100R07N2E4_B11

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    25

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector-Emitter Voltage-Max:

    650 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X13

  • Number of Elements:

    6

  • Number of Terminals:

    13

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    370 ns

  • Turn-on Time-Nom (ton):

    100 ns
