Part Image

FS100R12KE3 - Infineon

Description: IGBT Modules 1200V 100A 3-PHASE

Download FS100R12KE3 Model

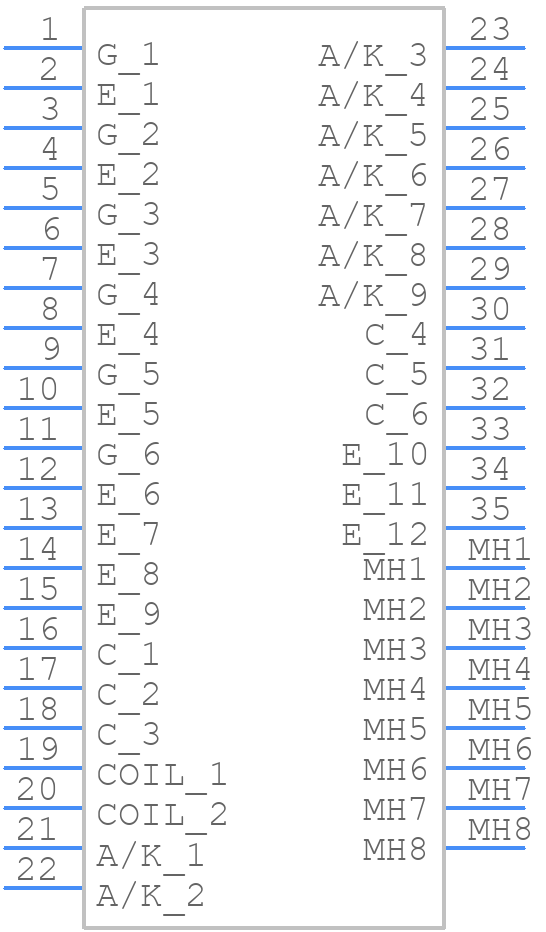

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

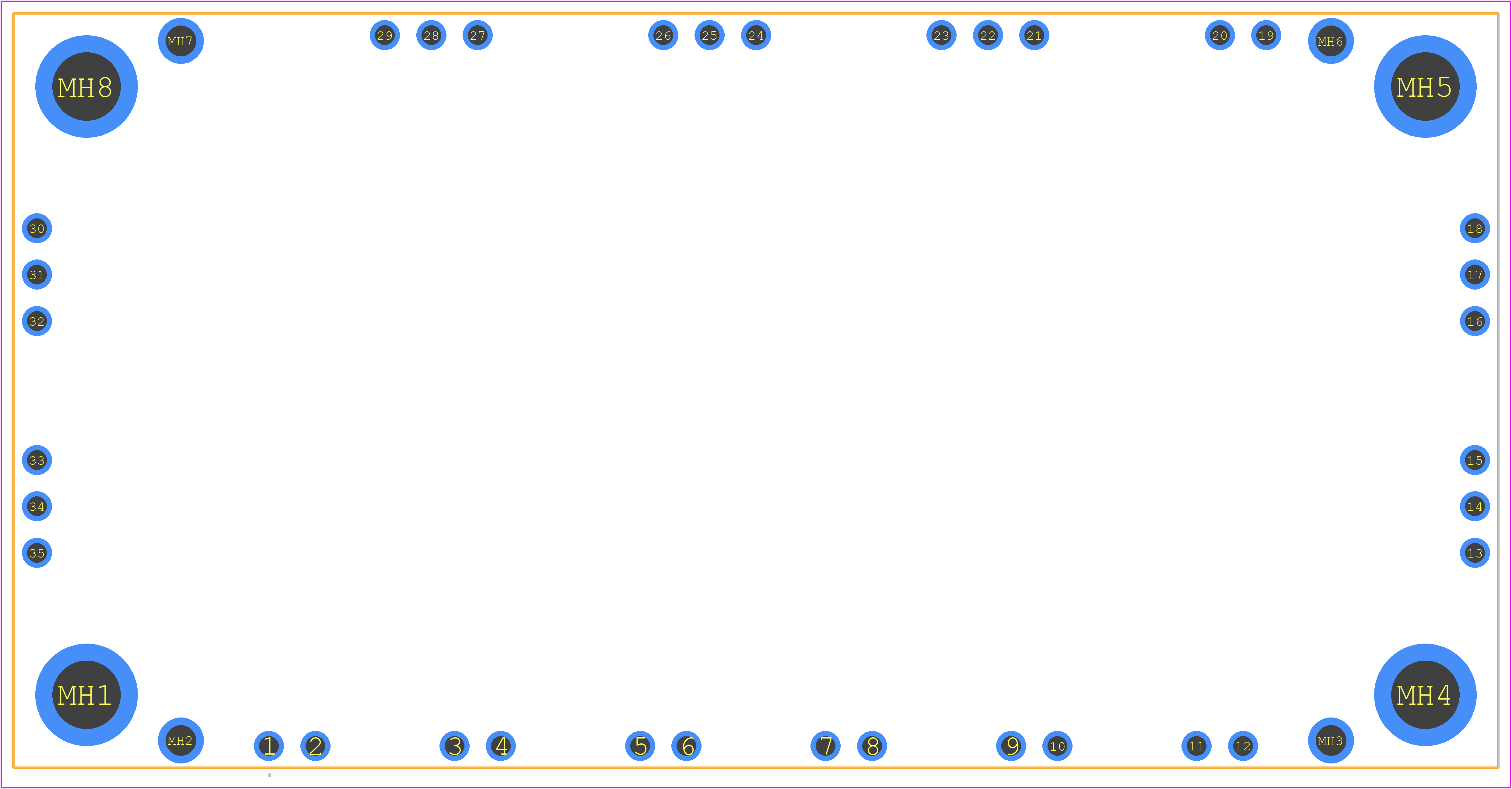

FS100R12KE3 - Infineon PCB footprint - Other - Other - FS100R12KE3-3
click to zoom
3D Models
FS100R12KE3 - Infineon  - 3D model - Other - FS100R12KE3-3
click to zoom

FS100R12KE3 Details

  • Manufacturer Part Number:

    FS100R12KE3

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    140 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    6

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    480 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    610 ns

  • Turn-on Time-Nom (ton):

    340 ns

  • VCEsat-Max:

    2.15 V

FS100R12KE3 Frequently Asked Questions (FAQs)

  • The maximum allowed case temperature for the FS100R12KE3 is 150°C, as specified in the datasheet.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, ensuring good airflow, and avoiding overheating.
  • The recommended gate resistor value for the FS100R12KE3 is typically in the range of 10-20 ohms, depending on the specific application and switching frequency.
  • Yes, the FS100R12KE3 can be used in a parallel configuration to increase power handling, but it's essential to ensure proper synchronization and current sharing between the devices.
  • To protect the FS100R12KE3, it's recommended to use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, as well as a fuse or circuit breaker to prevent damage from excessive currents.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS100R12KE3 Overview

Use the download button to access the FS100R12KE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS100, or try a keyword search, such as IGBTs
