Part Image

FS100R12KT4GBOSA1 - Infineon

Description: IGBT Module, Six Pack [Full Bridge], 100 A, 1.75 V, 515 W, 150 °C, Module , -40°C ~ 150°C

Download FS100R12KT4GBOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

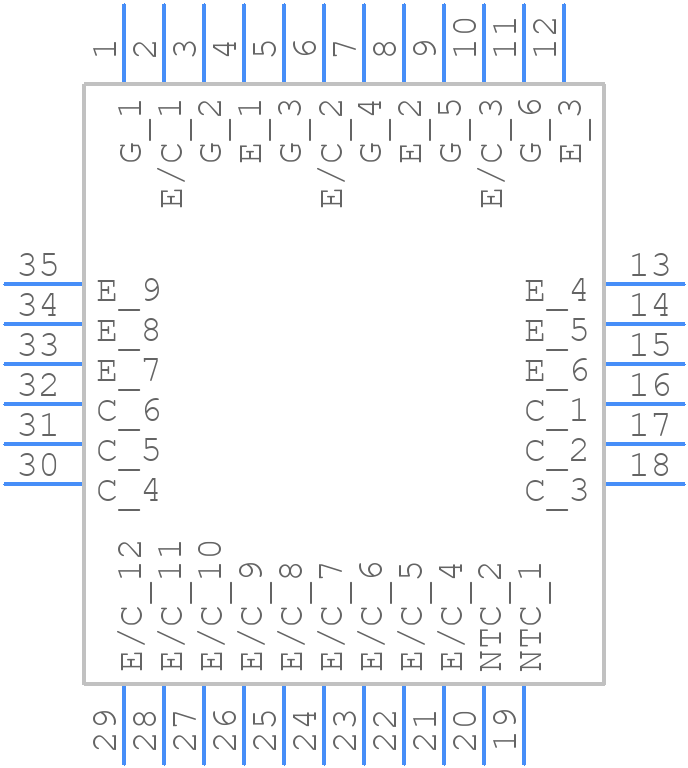

FS100R12KT4GBOSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

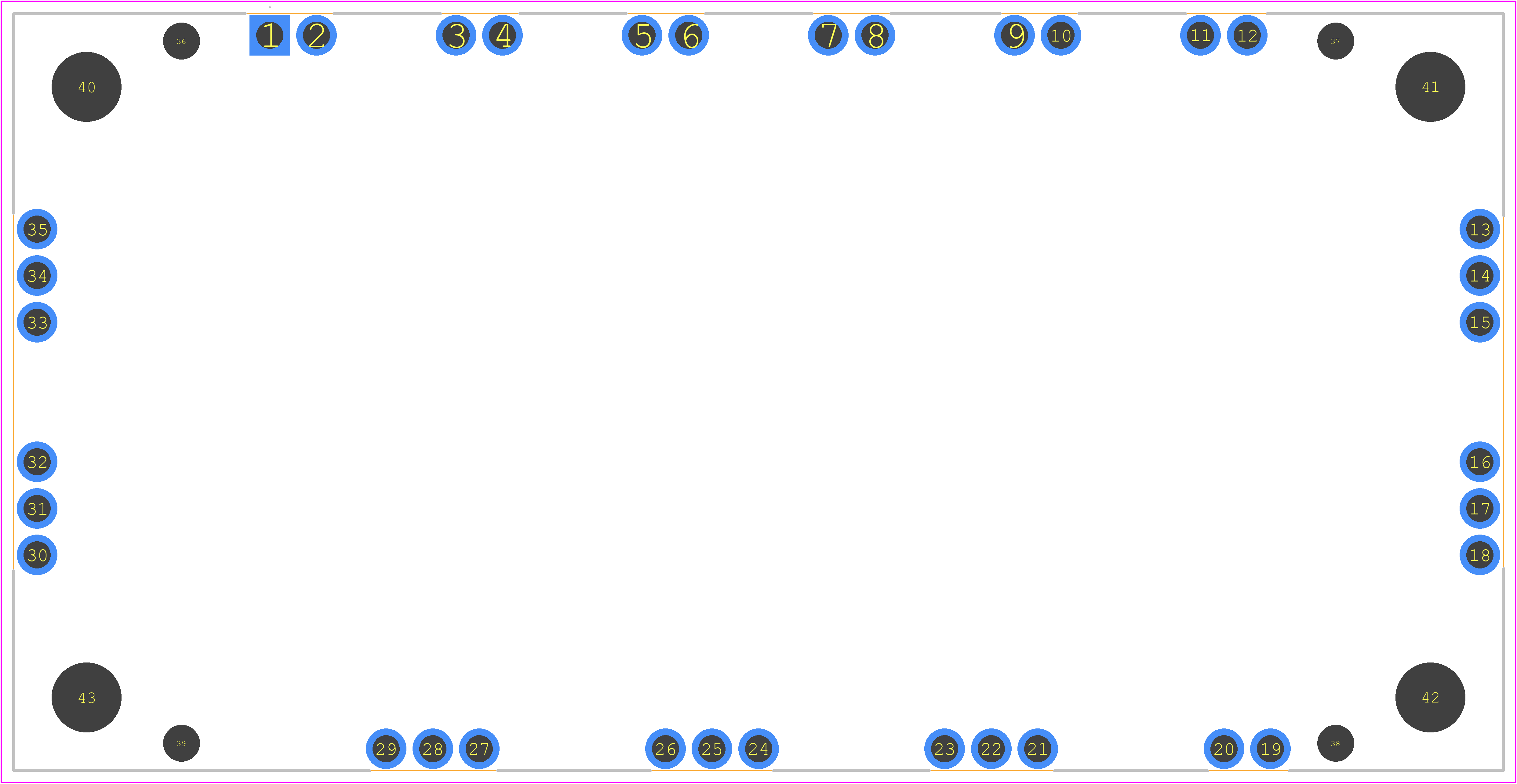

FS100R12KT4GBOSA1 - Infineon PCB footprint - Other - Other - FS100R12KT4GBOSA1-4
click to zoom
3D Models
FS100R12KT4GBOSA1 - Infineon - 3D model - Other - FS100R12KT4GBOSA1-4
click to zoom

FS100R12KT4GBOSA1 Details

  • Manufacturer Part Number:

    FS100R12KT4GBOSA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Package Description:

    MODULE-35

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Case Connection:

    ISOLATED

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    6

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    570 ns

  • Turn-on Time-Nom (ton):

    165 ns

FS100R12KT4GBOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS100R12KT4GBOSA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the FS100R12KT4GBOSA1 is typically in the range of 10 ohms to 20 ohms, but may vary depending on the specific application and switching frequency.
  • Yes, the FS100R12KT4GBOSA1 can be used in a parallel configuration, but it's essential to ensure that the modules are properly matched and that the gate drive and control circuits are designed to handle the parallel configuration.
  • The maximum allowable voltage transient for the FS100R12KT4GBOSA1 is typically 1.5 times the maximum rated voltage, but it's essential to consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS100R12KT4GBOSA1 Overview

Use the download button to access the FS100R12KT4GBOSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS100, or try a keyword search, such as IGBTs
