FS12-200 - Triad Magnetics

Description: Power Transformers POWER XFMR 12.6Vct@0.200A UL/cUL 115/230V SPLIT PACK PCB MOUNT/FS12-200

Download FS12-200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS12-200 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

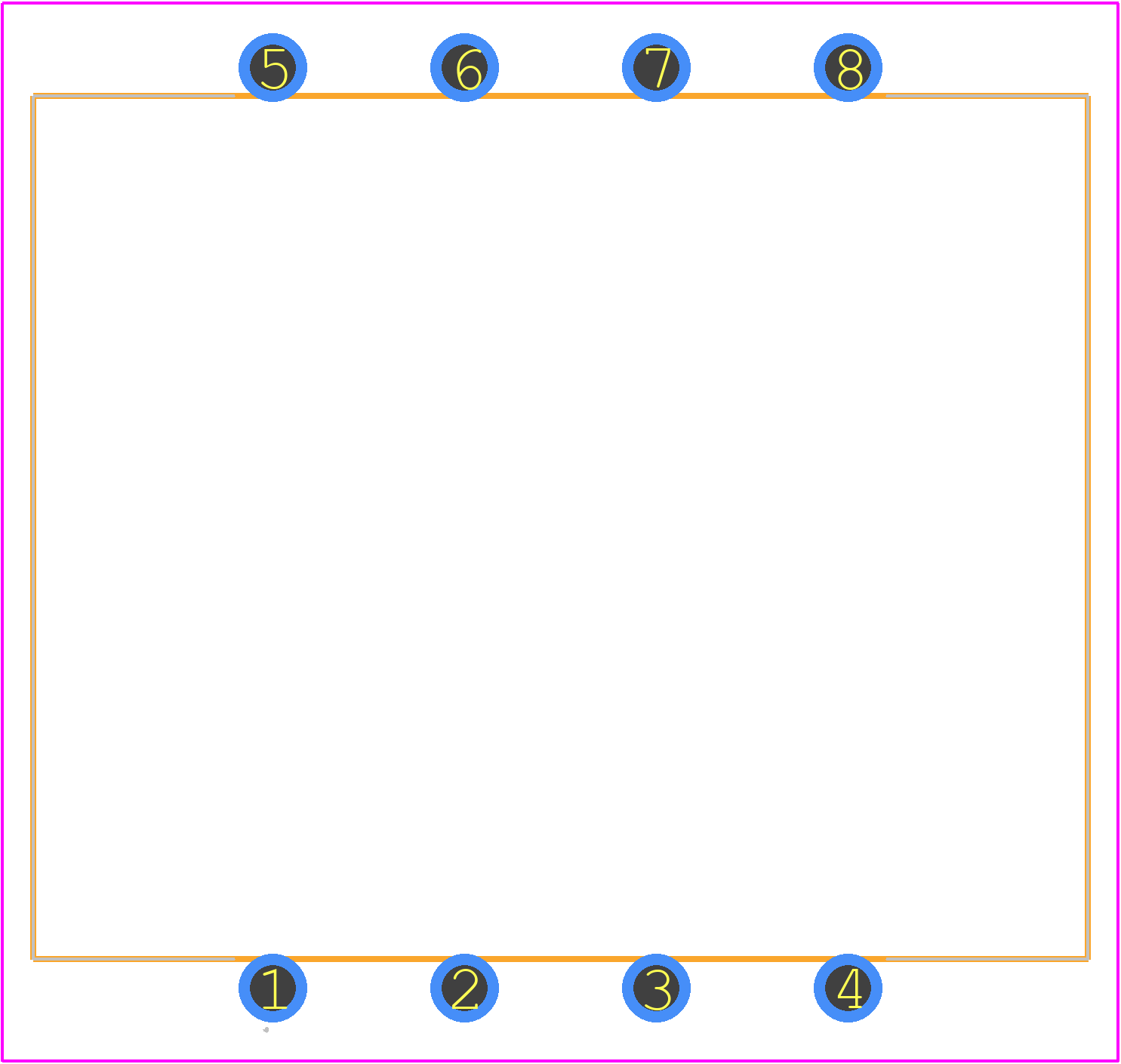

FS12-200 - Triad Magnetics PCB footprint - Other - Other - FS12-200-2
click to zoom
3D Models
FS12-200 - Triad Magnetics - 3D model - Other - FS12-200-2
click to zoom

FS12-200 Details

  • Manufacturer Part Number:

    FS12-200

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.4 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

FS12-200 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS12-200 is 50-400 Hz, although it can operate up to 1 kHz with reduced performance.
  • Yes, the FS12-200 is suitable for switching power supply applications, but it's essential to ensure that the operating frequency and voltage ratings are within the transformer's specifications.
  • The maximum ambient temperature rating for the FS12-200 is 130°C, with a maximum temperature rise of 60°C above ambient.
  • Yes, the FS12-200 meets the requirements of UL 1561 and IEC 61558 safety standards for transformers.
  • The recommended creepage distance for the FS12-200 is 4.5 mm, which is the minimum distance between the primary and secondary windings.
