FS200R06KE3BOSA1 - Infineon

Description: INFINEON - FS200R06KE3BOSA1 - TRANSISTOR, IGBT MODULE, 600V, 200A

Download FS200R06KE3BOSA1 Model

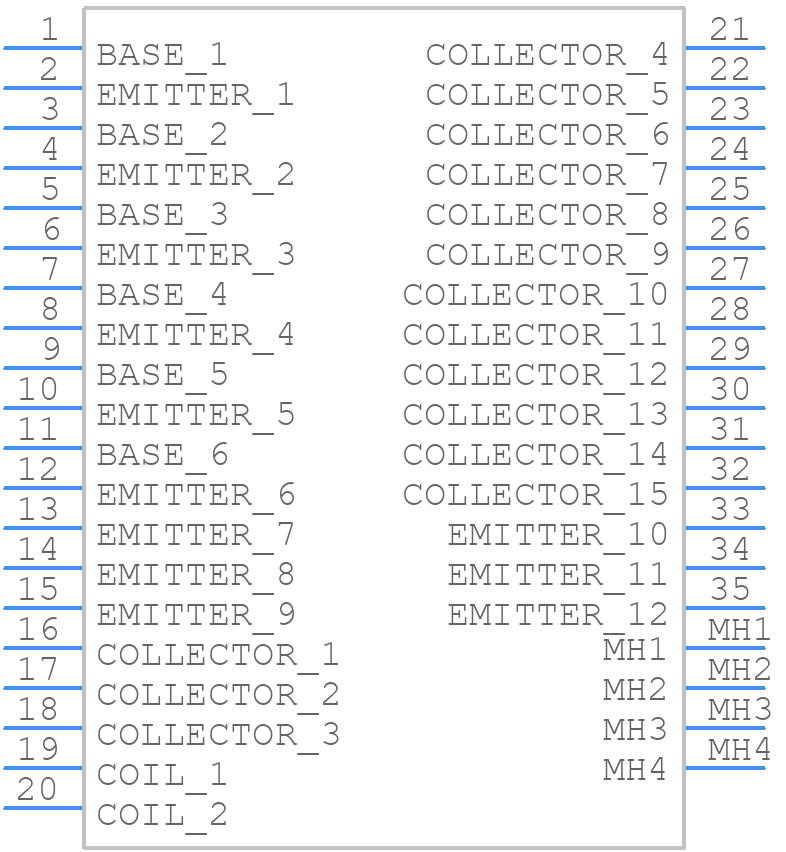

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

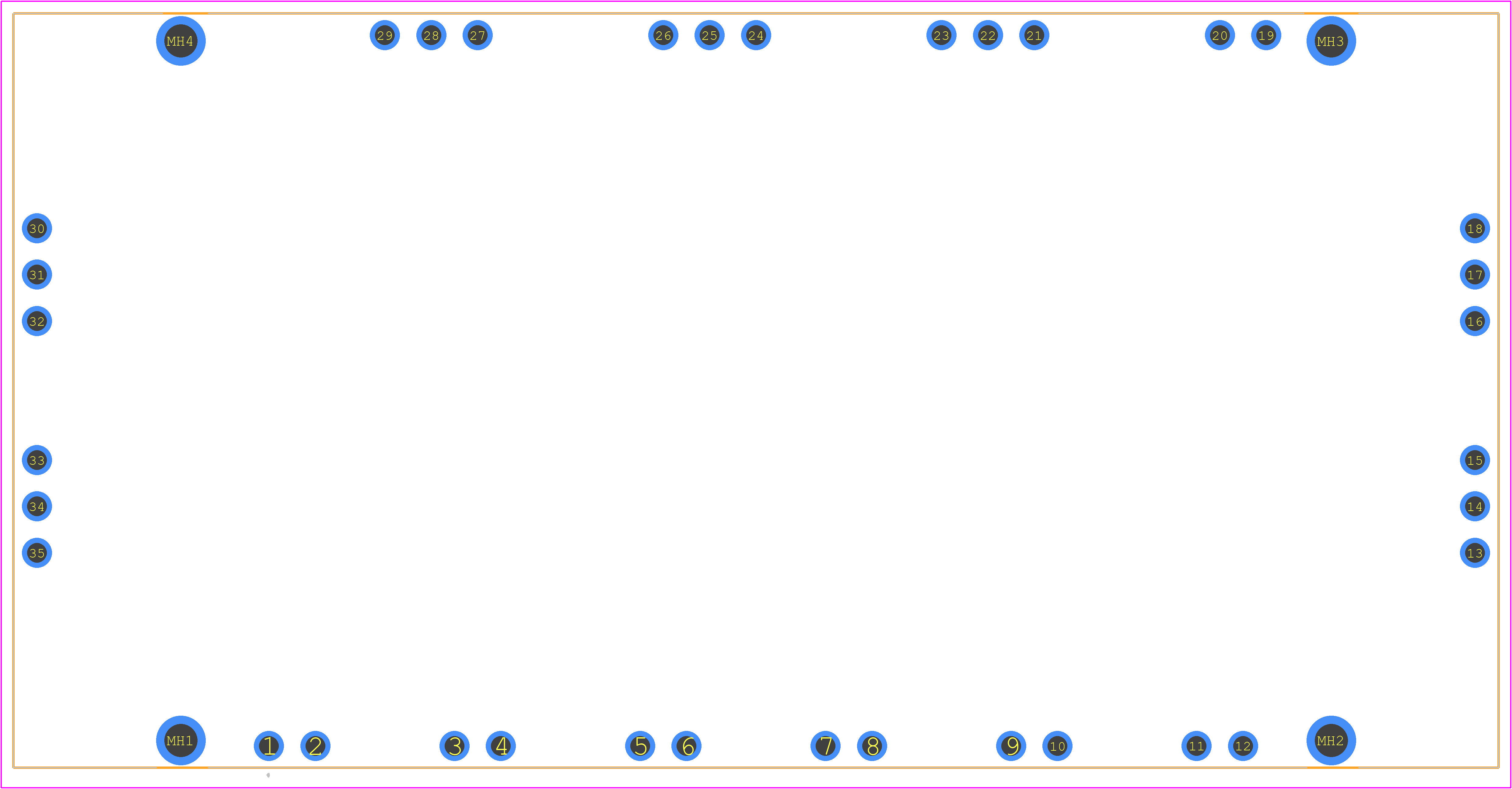

FS200R06KE3BOSA1 - Infineon PCB footprint - Other - Other - FS200R06KE3BOSA1-1
click to zoom
3D Models
FS200R06KE3BOSA1 - Infineon  - 3D model - Other - FS200R06KE3BOSA1-1
click to zoom

FS200R06KE3BOSA1 Details

  • Manufacturer Part Number:

    FS200R06KE3BOSA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    200 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    6

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    450 ns

  • Turn-on Time-Nom (ton):

    210 ns

FS200R06KE3BOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS200R06KE3BOSA1 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • The maximum current rating for the FS200R06KE3BOSA1 is 200A. However, it's essential to consider the device's thermal limitations and ensure proper cooling to prevent overheating.
  • Yes, you can use multiple FS200R06KE3BOSA1 devices in parallel to increase the current rating. However, it's crucial to ensure proper synchronization and thermal management to prevent uneven current distribution and overheating.
  • The recommended gate drive voltage for the FS200R06KE3BOSA1 is 15V. However, it's essential to consult the datasheet and application notes for specific gate drive requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS200R06KE3BOSA1 Overview

Use the download button to access the FS200R06KE3BOSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS200, or try a keyword search, such as IGBTs
