FS200R12KT4RBOSA1 - Infineon

Description: IGBT Module NPT Three Phase Inverter 1200 V 280 A 1000 W Chassis Mount Module

Download FS200R12KT4RBOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

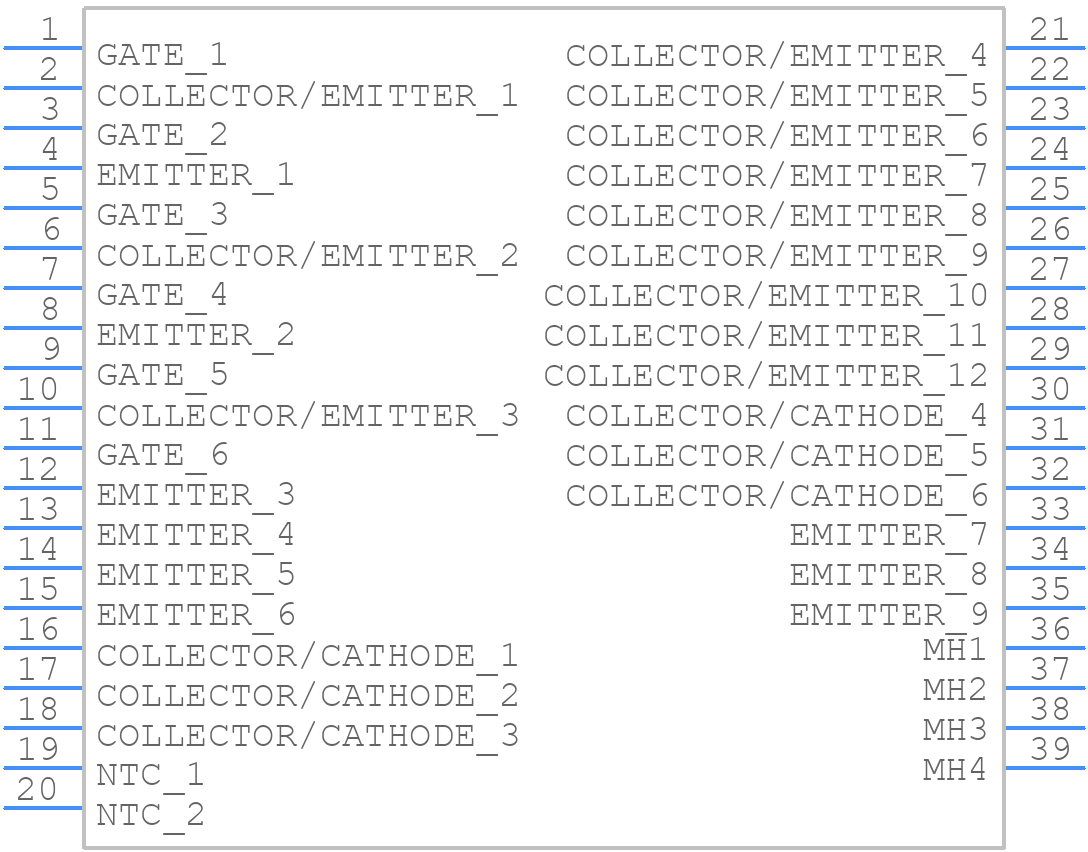

FS200R12KT4RBOSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

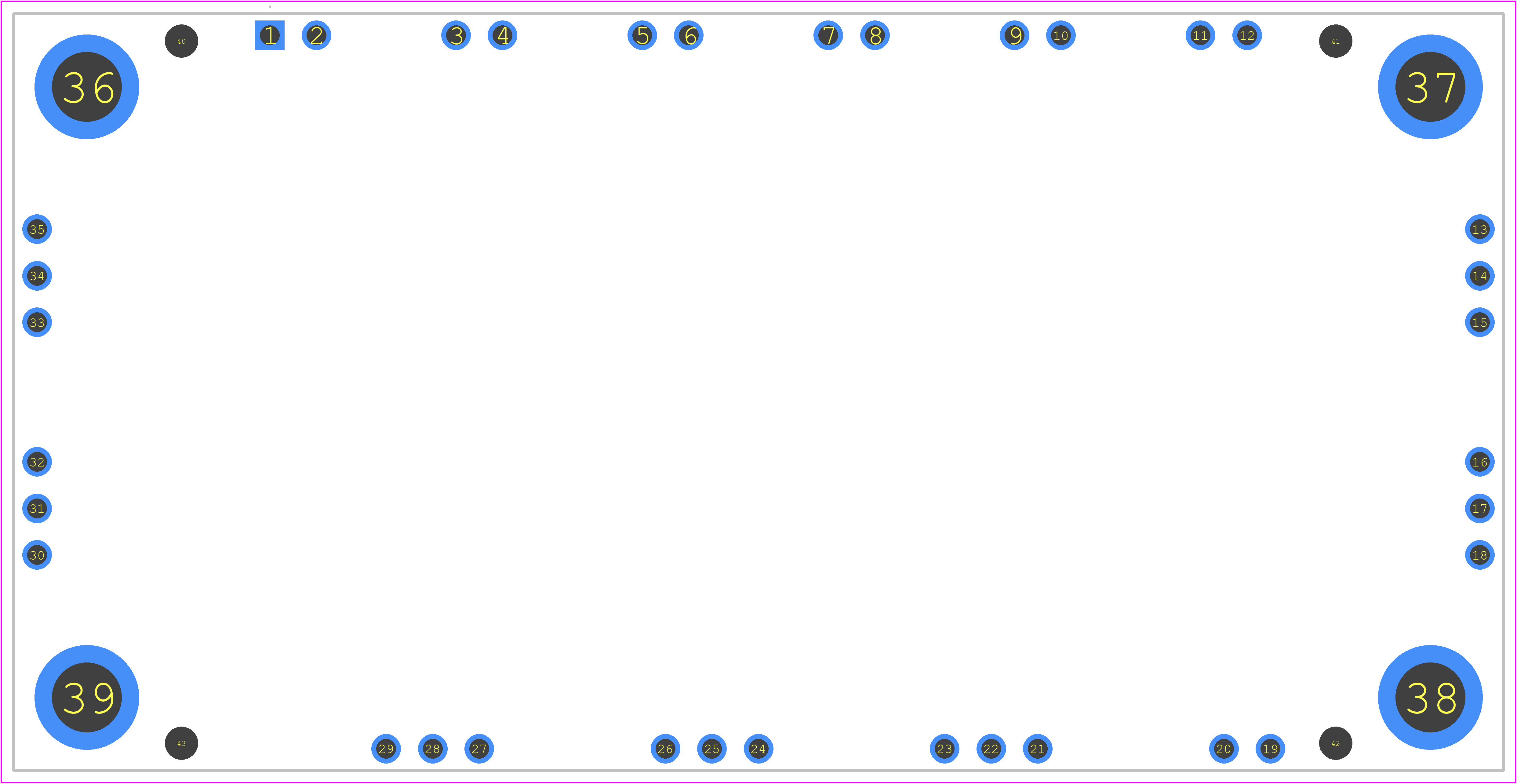

FS200R12KT4RBOSA1 - Infineon PCB footprint - Other - Other - FS200R12KT4RBOSA1-3
click to zoom
3D Models
FS200R12KT4RBOSA1 - Infineon - 3D model - Other - FS200R12KT4RBOSA1-3
click to zoom

FS200R12KT4RBOSA1 Details

  • Manufacturer Part Number:

    FS200R12KT4RBOSA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    280 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    6

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    600 ns

  • Turn-on Time-Nom (ton):

    190 ns

FS200R12KT4RBOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS200R12KT4RBOSA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the FS200R12KT4RBOSA1 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the FS200R12KT4RBOSA1 can be used in a parallel configuration, but it requires careful consideration of the module's current sharing and thermal management.
  • The maximum allowable voltage transient for the FS200R12KT4RBOSA1 is typically 1.5 times the maximum rated voltage, but this may vary depending on the specific application and operating conditions.
