The maximum operating temperature range for the FS20R06W1E3_B11 is -55°C to 175°C, as specified in the datasheet. However, it's essential to consider the derating curves for power dissipation and junction temperature to ensure reliable operation.
To ensure proper cooling, consider the thermal resistance (Rth) of the device, which is 2.5 K/W for the FS20R06W1E3_B11. Use a heat sink with a sufficient thermal conductivity, and ensure good thermal contact between the device and the heat sink. You can also use thermal interface materials to reduce thermal resistance.
The recommended gate drive voltage for the FS20R06W1E3_B11 is between 10 V and 15 V. However, the datasheet specifies a maximum gate-source voltage of ±20 V. It's essential to ensure the gate drive voltage is within the recommended range to prevent damage and ensure reliable operation.
Yes, the FS20R06W1E3_B11 is suitable for high-frequency switching applications due to its low gate charge (Qg) of 13 nC and low output capacitance (Coss) of 220 pF. However, it's crucial to consider the device's switching characteristics, such as the rise and fall times, and ensure the driver circuitry is capable of handling the high-frequency switching requirements.
To protect the FS20R06W1E3_B11 from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials. Ensure the device is properly grounded during assembly and testing, and consider using ESD protection devices, such as TVS diodes, in your design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS20R06W1E3_B11 Overview

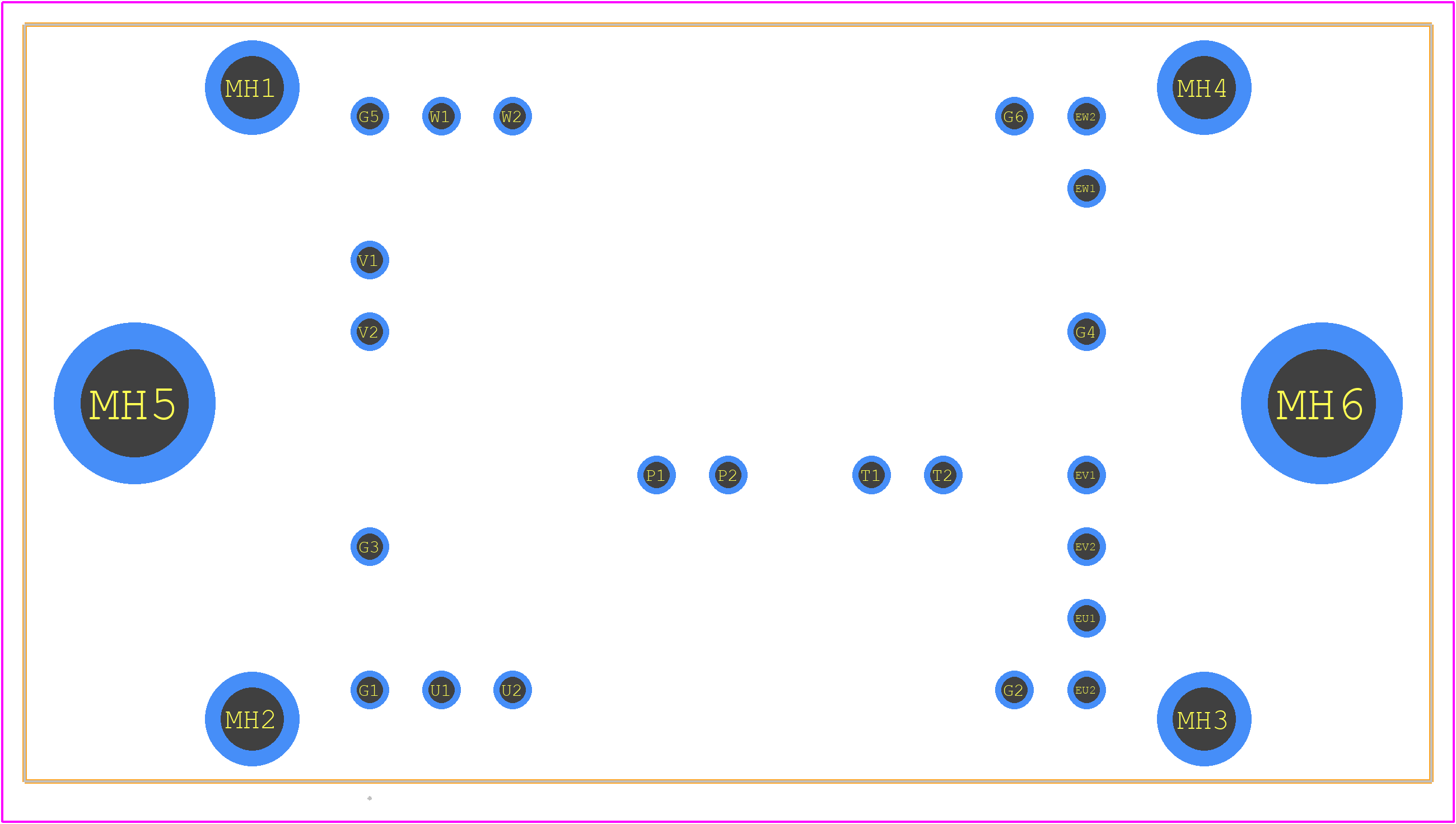

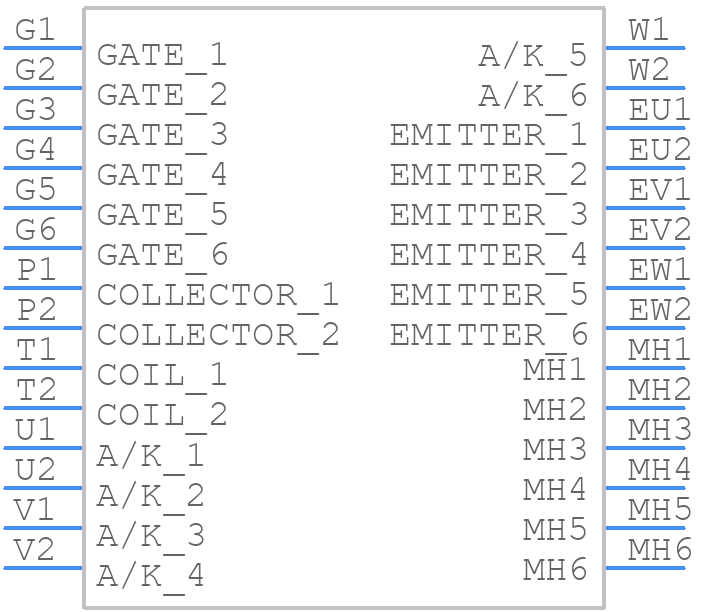

Use the download button to access the FS20R06W1E3_B11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS20R,
or try a keyword search, such as IGBTs
