FS24-100-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 24 Vct @ 100 mA UL/cUL - Class 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS24-100-C2

Download FS24-100-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS24-100-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

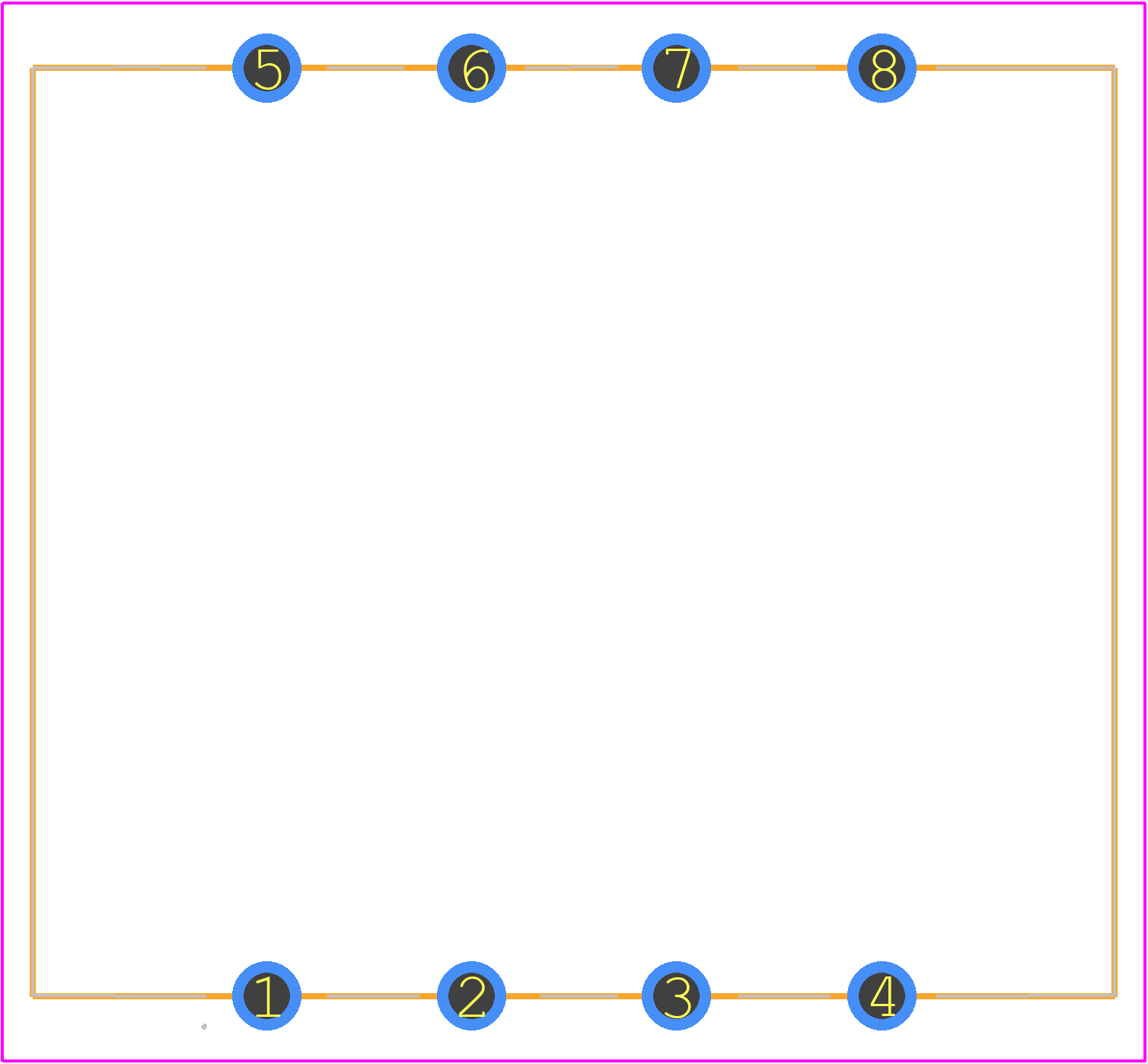

FS24-100-C2 - Triad Magnetics PCB footprint - Other - Other - FS24-100-C2-2
click to zoom
3D Models
FS24-100-C2 - Triad Magnetics - 3D model - Other - FS24-100-C2-2
click to zoom

FS24-100-C2 Details

  • Manufacturer Part Number:

    FS24-100-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.2 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

FS24-100-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS24-100-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Yes, the FS24-100-C2 is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature rating for the FS24-100-C2 is 130°C, but derating may be required for high-temperature applications.
  • Yes, the FS24-100-C2 meets the requirements of UL 1561 and IEC 61558 safety standards for transformers.
  • Yes, the FS24-100-C2 can be used in high-reliability or military applications, but the designer should ensure that the transformer meets the specific requirements of the application, including environmental and performance requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS24-100-C2 Overview

Use the download button to access the FS24-100-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS24-, or try a keyword search, such as Power/Mains Transformers
