FS24-1500-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 24 Vct @ 1500 mA UL/cUL - Class 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS24-1500-C2

Download FS24-1500-C2 Model

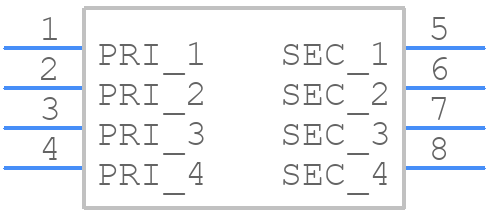

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

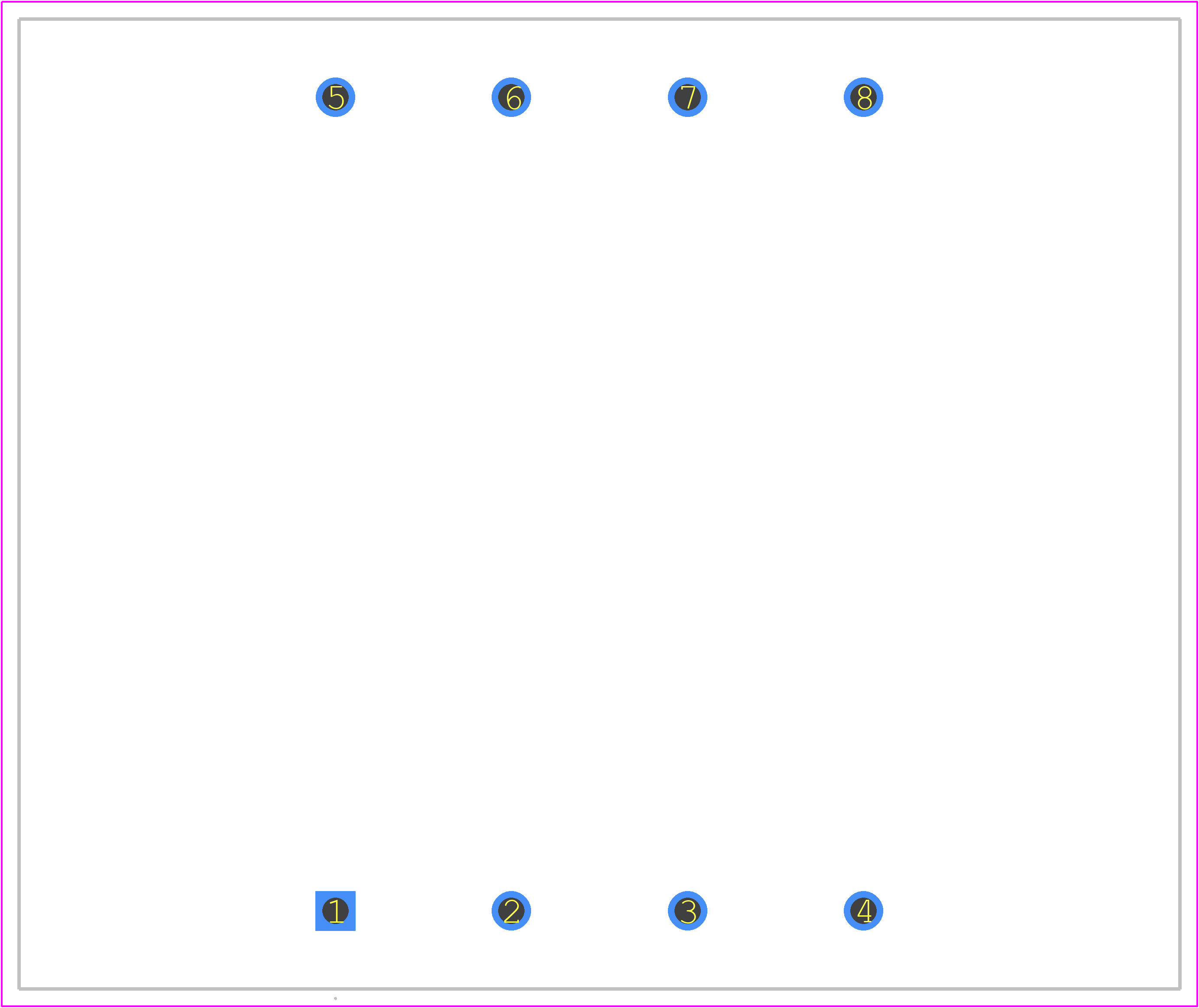

PCB Footprints
FS24-1500-C2 - Triad Magnetics PCB footprint - Other - Other - FS24-1500-C2-1
click to zoom
3D Models
FS24-1500-C2 - Triad Magnetics  - 3D model - Other - FS24-1500-C2-1
click to zoom

FS24-1500-C2 Details

  • Manufacturer Part Number:

    FS24-1500-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    39.69 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    66.68 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    3 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    36 VA

  • Width:

    55.56 mm

FS24-1500-C2 Frequently Asked Questions (FAQs)

  • Triad Magnetics recommends a minimum of 0.25 inches (6.4 mm) of clearance around the transformer on the PCB, and a symmetrical layout to minimize electromagnetic interference (EMI).
  • The FS24-1500-C2 has a maximum operating temperature of 130°C, but derating is required above 100°C. Consult the datasheet for derating curves and ensure proper thermal management in high-temperature applications.
  • The FS24-1500-C2 has a 1500Vrms isolation voltage, but it's essential to follow proper safety guidelines, such as using a suitable insulation system, creepage, and clearance distances to meet relevant safety standards (e.g., UL, IEC).
  • Triad Magnetics recommends using the transformer in a push-pull or forward converter configuration to minimize core losses and ensure optimal performance. Consult the datasheet for specific winding configurations and guidelines.
  • The FS24-1500-C2 is not optimized for resonant converter topologies. However, it can be used in such applications with careful design and consideration of the transformer's characteristics, such as leakage inductance and magnetizing inductance.
