According to Infineon's application notes, the maximum allowed voltage imbalance is ±10% of the nominal voltage between any two phases.
Infineon recommends using a heat sink with a thermal resistance of ≤ 1.5 K/W, and ensuring a maximum junction temperature of 150°C. Additionally, a thermal interface material with a thermal conductivity of ≥ 1 W/mK should be used.
Infineon recommends a gate resistance of 10 Ω to 20 Ω for optimal switching performance and to minimize oscillations.
No, the FS25R12KT3 is rated for a maximum DC-link voltage of 650 V. Exceeding this voltage may lead to reduced reliability and potentially cause damage to the device.
Infineon recommends using a fast-acting fuse or a semiconductor-based overcurrent protection device, such as an IGBT protection IC, to detect and respond to overcurrent and short-circuit conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS25R12KT3 Overview

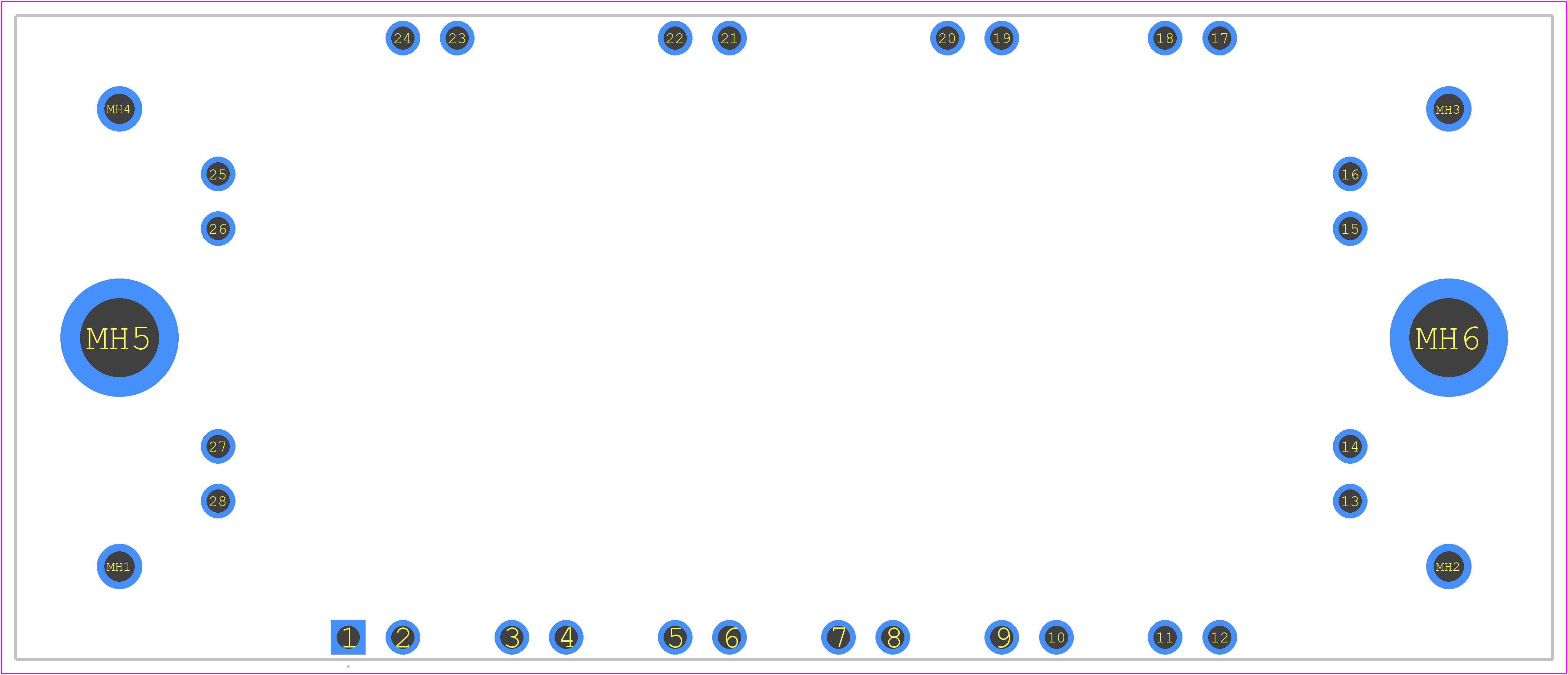

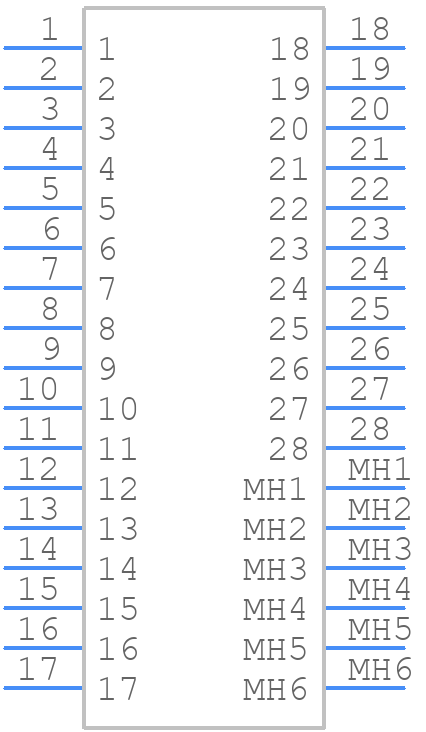

Use the download button to access the FS25R12KT3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS25R,
or try a keyword search, such as IGBTs
