FS25R12W1T7PB11BPSA1 footprint, schematic symbol and 3D model by Infineon

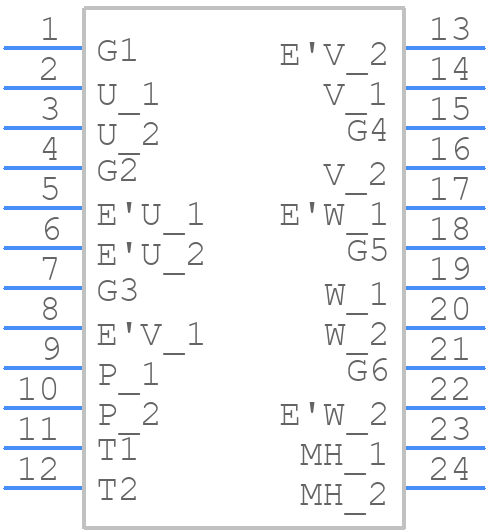

Symbol

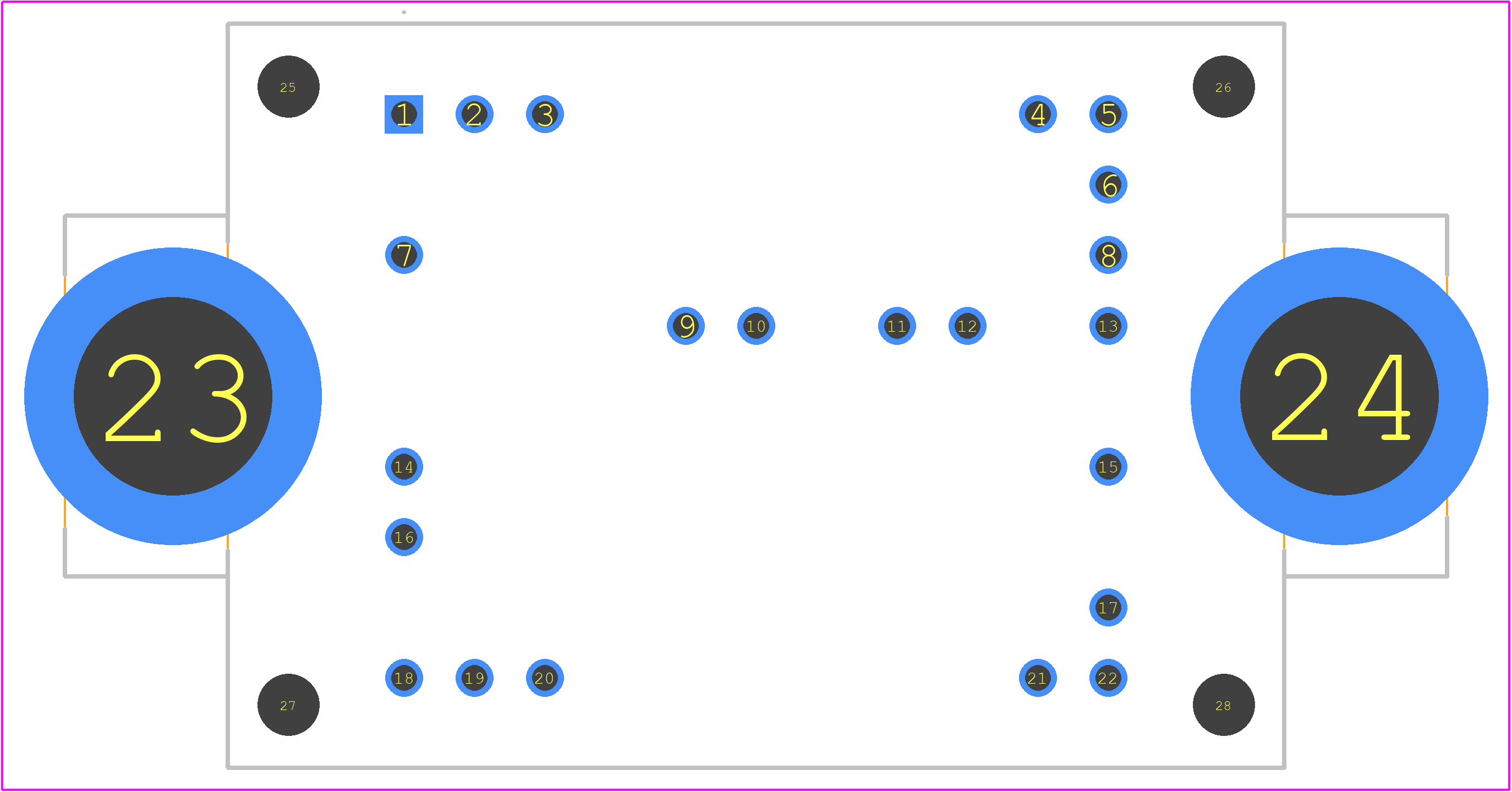

PCB Footprints

3D Models

FS25R12W1T7PB11BPSA1 Details

The thermal resistance (Rth) of the FS25R12W1T7PB11BPSA1 is typically around 1.5 K/W (junction-to-case) and 3.5 K/W (junction-to-ambient) when mounted on a standard PCB.
The FS25R12W1T7PB11BPSA1 is rated for operation up to 150°C (Tj), but it's recommended to derate the power handling at higher temperatures to ensure reliability and prevent thermal runaway.
To ensure reliability, follow the recommended assembly and soldering guidelines, use a robust PCB design, and implement adequate thermal management, such as heat sinks or cooling systems.
The recommended gate drive voltage for the FS25R12W1T7PB11BPSA1 is between 10 V and 15 V, with a maximum gate-source voltage of ±20 V.
Yes, the FS25R12W1T7PB11BPSA1 can be used in a parallel configuration, but it's essential to ensure that the devices are properly matched, and the gate drive and control circuits are designed to handle the increased current and voltage requirements.

Community Provided

System Verified

Community Approved

Use the download button to access the FS25R12W1T7PB11BPSA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS25R, or try a keyword search, such as IGBTs
