FS3000-1005 - Renesas Electronics

Description: The FS3000 is a surface-mount type air velocity module utilizing a MEMS thermopile-based sensor. The FS3000 features a digital output with 12-bit resolution. The sensor comprises a “solid” thermal isolation technology and silicon-carbide coating to protect it from abrasive wear and water condensation.The FS3000 features a compact design fit for low profile enclosures.

Download FS3000-1005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

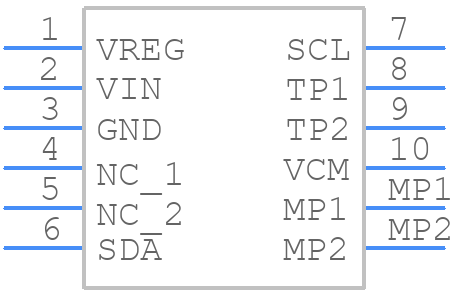

Symbol
FS3000-1005 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
FS3000-1005 - Renesas Electronics PCB footprint - Other - Other - FS3000-1005-6
click to zoom
3D Models
FS3000-1005 - Renesas Electronics - 3D model - Other - FS3000-1005-6
click to zoom

FS3000-1005 Details

  • Manufacturer Part Number:

    FS3000-1005

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    0

  • Manufacturer Package Code:

    MOD1

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Body Breadth:

    7.8 mm

  • Body Height:

    4 mm

  • Body Length or Diameter:

    8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MASS AIR FLOW SENSOR

  • Surface Mount:

    YES

FS3000-1005 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a heat sink or thermal interface material, and ensure good airflow around the device. Also, consider derating the device's power consumption at high temperatures.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, placed as close to the VIN pin as possible, to filter input voltage noise and ripple.
  • Use an oscilloscope to monitor the input and output voltages, and check for proper pin connections and PCB layout. Consult the datasheet and application notes for troubleshooting guidelines.
  • Use a shielded enclosure, ensure proper PCB layout and grounding, and add EMI filters or common-mode chokes as needed. Follow the datasheet and application notes for EMI and EMC guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS3000-1005 Overview

Use the download button to access the FS3000-1005 schematic symbol, PCB footprint, and 3D model.
