FS32V234CON1VUBR - NXP

Description: S32V234 QUAD-CORE ARM, 1 GHZ, SECURITY, ISO 26262 - S32V MPUS FOR FRONT/SURROUND VIEW CAMERA, COMPUTER VISION, REEL 13" Q1 DP, TR

Download FS32V234CON1VUBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS32V234CON1VUBR - NXP - PCB symbol
click to zoom
PCB Footprints

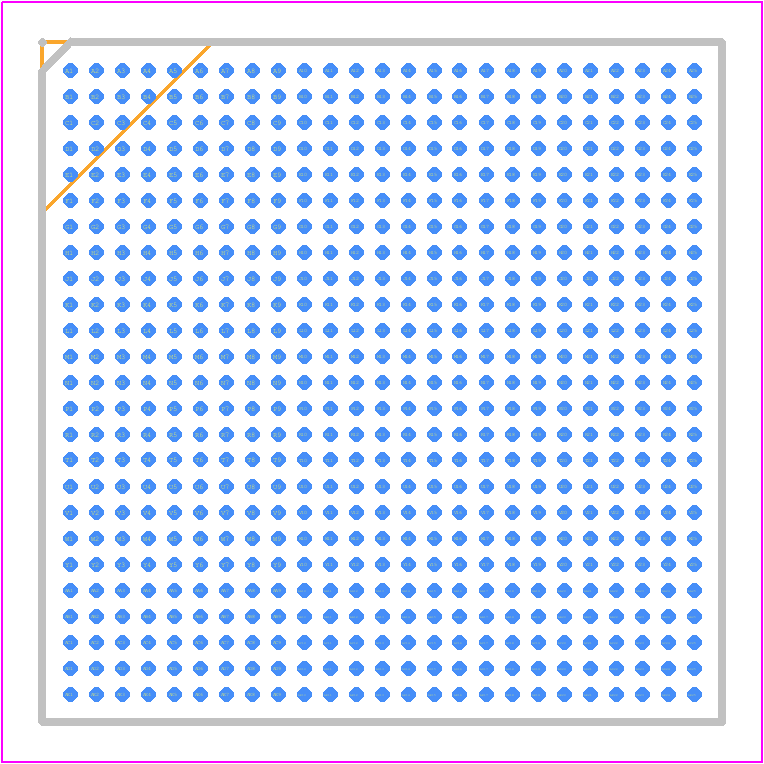

FS32V234CON1VUBR - NXP PCB footprint - BGA - BGA - 625 fcbga
click to zoom
3D Models
FS32V234CON1VUBR - NXP - 3D model - BGA - 625 fcbga
click to zoom

FS32V234CON1VUBR Details

  • Manufacturer Part Number:

    FS32V234CON1VUBR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FCBGA-621

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B621

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    621

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA621,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    ISO 26262-ASIL B

  • Seated Height-Max:

    2.44 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC
