Part Image

FS33MR12W1M1HB11BPSA1 - Infineon

Description: Mosfet Array 1200V (1.2kV) Chassis Mount AG-EASY1B

Download FS33MR12W1M1HB11BPSA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FS33MR12W1M1HB11BPSA1 model

Email notifications will be applied after download.

Send part feedback

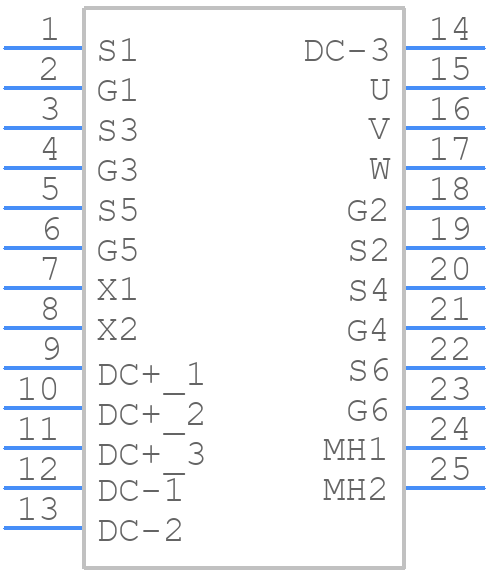

Symbol

FS33MR12W1M1HB11BPSA1 - Infineon - PCB symbol

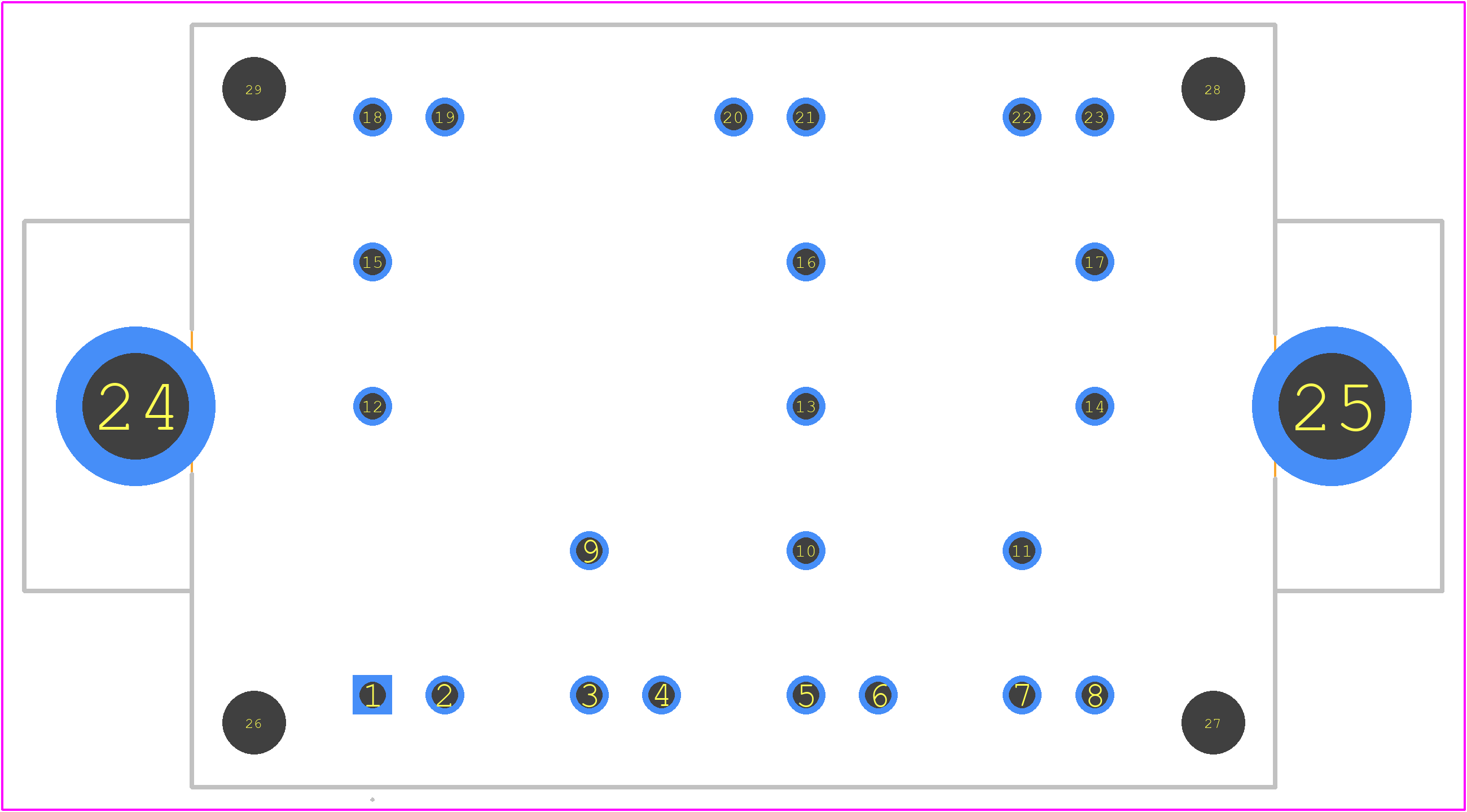

PCB Footprints

FS33MR12W1M1HB11BPSA1 - Infineon PCB footprint - Other - Other - FS33MR12W1M1HB11BPSA1-3

3D Models

FS33MR12W1M1HB11BPSA1 - Infineon - 3D model - Other - FS33MR12W1M1HB11BPSA1-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS33MR12W1M1HB11BPSA1
Part Number FS33MR12W1M1HB11BPSA1
Manufacturer Infineon
Pin Count 25
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - FS33MR12W1M1HB11BPSA1-3
Released Date Jul 4, 2024
Last Modified Date Jul 4, 2024 3:48 PM UTC
Pinout / Pin List Click Here (Member Only)

FS33MR12W1M1HB11BPSA1 Details

Manufacturer Part Number:
FS33MR12W1M1HB11BPSA1
Manufacturer:
Infineon Technologies AG

Trust Checks

Expert Contribution

System Verified

Community Approved

FS33MR12W1M1HB11BPSA1 Overview

Use the download button to access the FS33MR12W1M1HB11BPSA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS33M, or try a keyword search, such as Film Capacitors

Parts related to FS33MR12W1M1HB11BPSA1

Showing 0 results
