FS36-030-C2 footprint, schematic symbol and 3D model by Triad Magnetics

Symbol

click to zoom

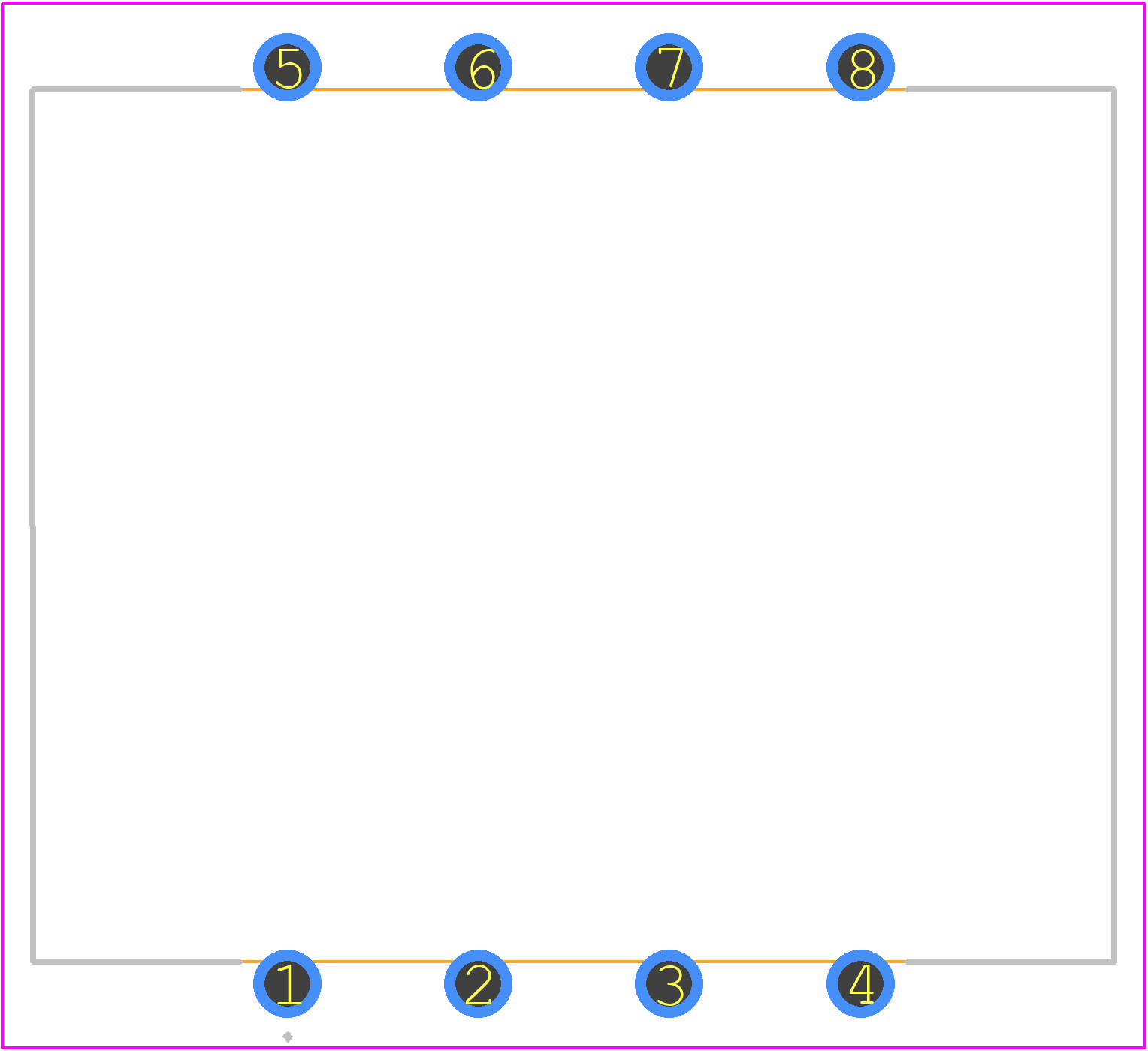

PCB Footprints

FS36-030-C2 - Triad Magnetics PCB footprint - Other - Other - FS36-030-C2-1

click to zoom

3D Models

FS36-030-C2 - Triad Magnetics - 3D model - Other - FS36-030-C2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS36-030-C2
Part Number FS36-030-C2
Manufacturer Triad Magnetics
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FS36-030-C2-1
Released Date Sep 1, 2021
Last Modified Date Oct 17, 2025 10:10 AM UTC
Pinout / Pin List Click Here (Member Only)

FS36-030-C2 Details

Manufacturer Part Number:
FS36-030-C2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Approvals:
CUL; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
23.81 mm
Input Voltage-Nom:
230 V
Isolation Voltage:
1500 V
Length:
34.93 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Secondary Winding:
2
Output Current 1:
0.06 A
Output Voltage 1:
18 V
Output Voltage 2:
18 V
Primary Rating:
DUAL 115V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
1.1 VA
Width:
28.58 mm

FS36-030-C2 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the FS36-030-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
Yes, the FS36-030-C2 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
The maximum allowable DCR for the FS36-030-C2 is 0.25 ohms per winding, measured at 20°C.
Yes, the FS36-030-C2 is designed to meet the requirements for use in Class I, Division 2 hazardous locations, as defined by the National Electric Code (NEC).
Yes, the FS36-030-C2 has a high isolation voltage rating of 4000 VAC, making it suitable for applications requiring high isolation voltage.

Trust Checks

Community Provided

System Verified

Community Approved

FS36-030-C2 Overview

Use the download button to access the FS36-030-C2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS36-, or try a keyword search, such as Power/Mains Transformers
