Part Image

FS3L40R07W2H5FB11BOMA1 - Infineon

Description: IGBT Module Trench Field Stop Three Phase Inverter 650 V 40 A 20 mW Chassis Mount AG-EASY2B-2

Download FS3L40R07W2H5FB11BOMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FS3L40R07W2H5FB11BOMA1 model

Email notifications will be applied after download.

Send part feedback

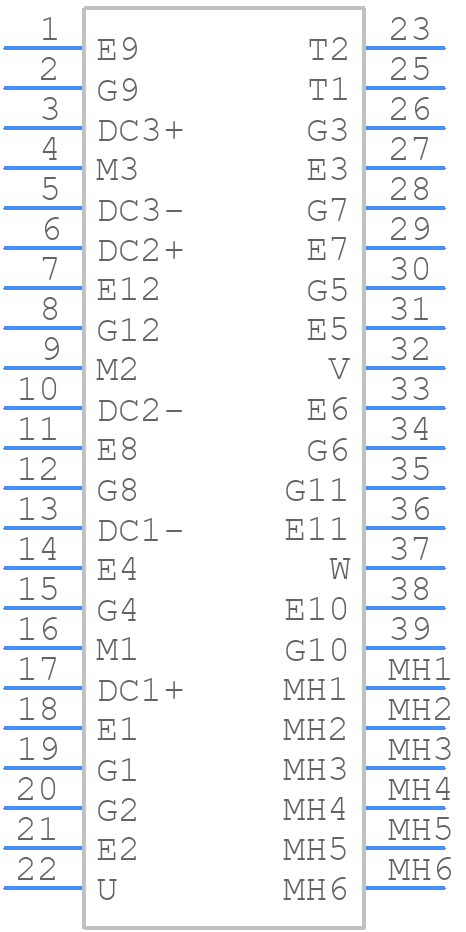

Symbol

FS3L40R07W2H5FB11BOMA1 - Infineon - PCB symbol

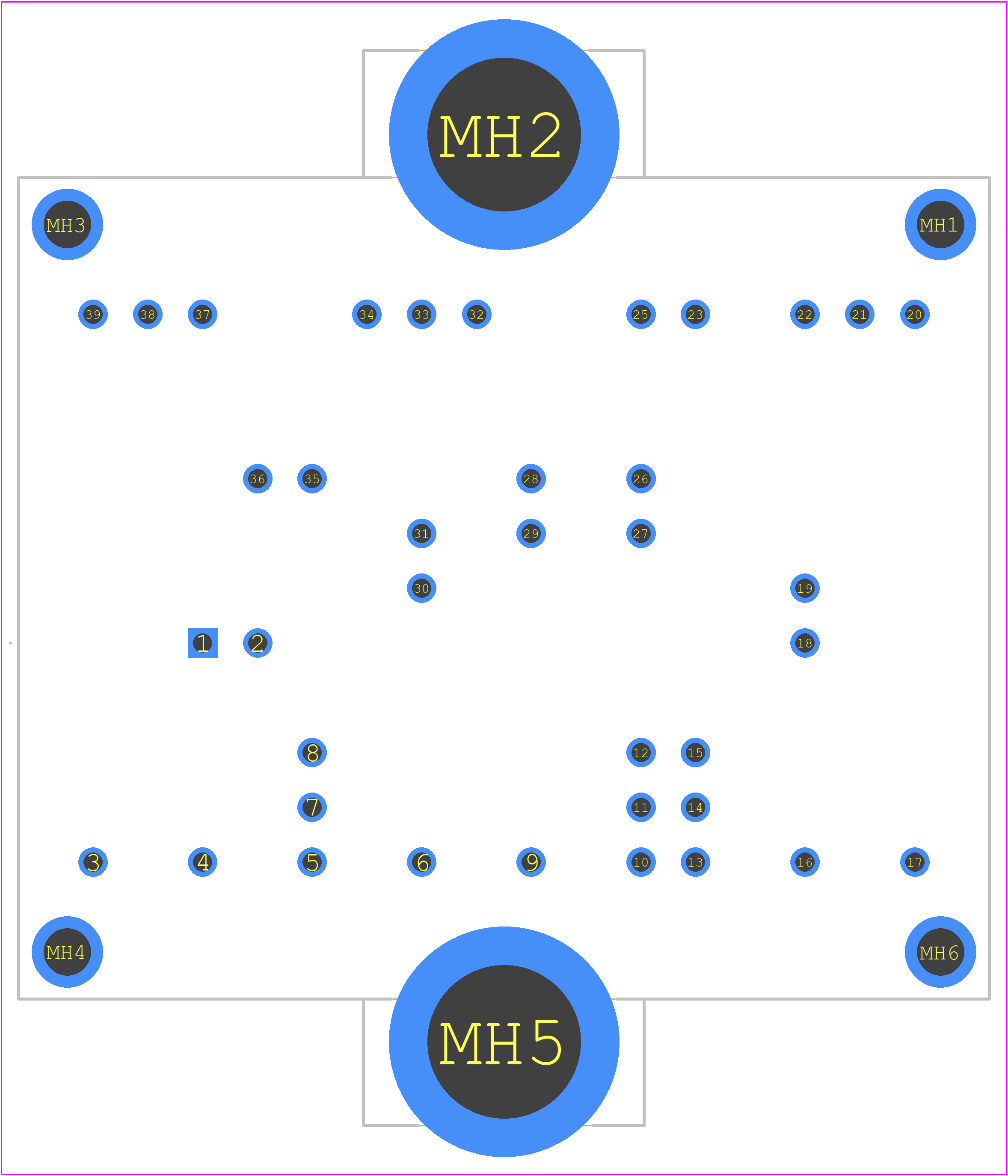

PCB Footprints

FS3L40R07W2H5FB11BOMA1 - Infineon PCB footprint - Other - Other - FS3L40R07W2H5FB11BOMA1-5

Datasheet Download Datasheet
Stock & Prices Price & Stock for FS3L40R07W2H5FB11BOMA1
Part Number FS3L40R07W2H5FB11BOMA1
Manufacturer Infineon
Pin Count 44
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - FS3L40R07W2H5FB11BOMA1-5
Released Date Mar 12, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FS3L40R07W2H5FB11BOMA1 Details

Manufacturer Part Number:
FS3L40R07W2H5FB11BOMA1
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

FS3L40R07W2H5FB11BOMA1 Overview

Use the download button to access the FS3L40R07W2H5FB11BOMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FS3L4, or try a keyword search, such as IGBTs
