FS400R12A2T4 - Infineon

Description: IGBT Modules HYBRID PACK 2 Hybrid PACK 2 module with Trench/Field stop IGBT 4 and Emitter Controlled 4 diode and NTC

Download FS400R12A2T4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

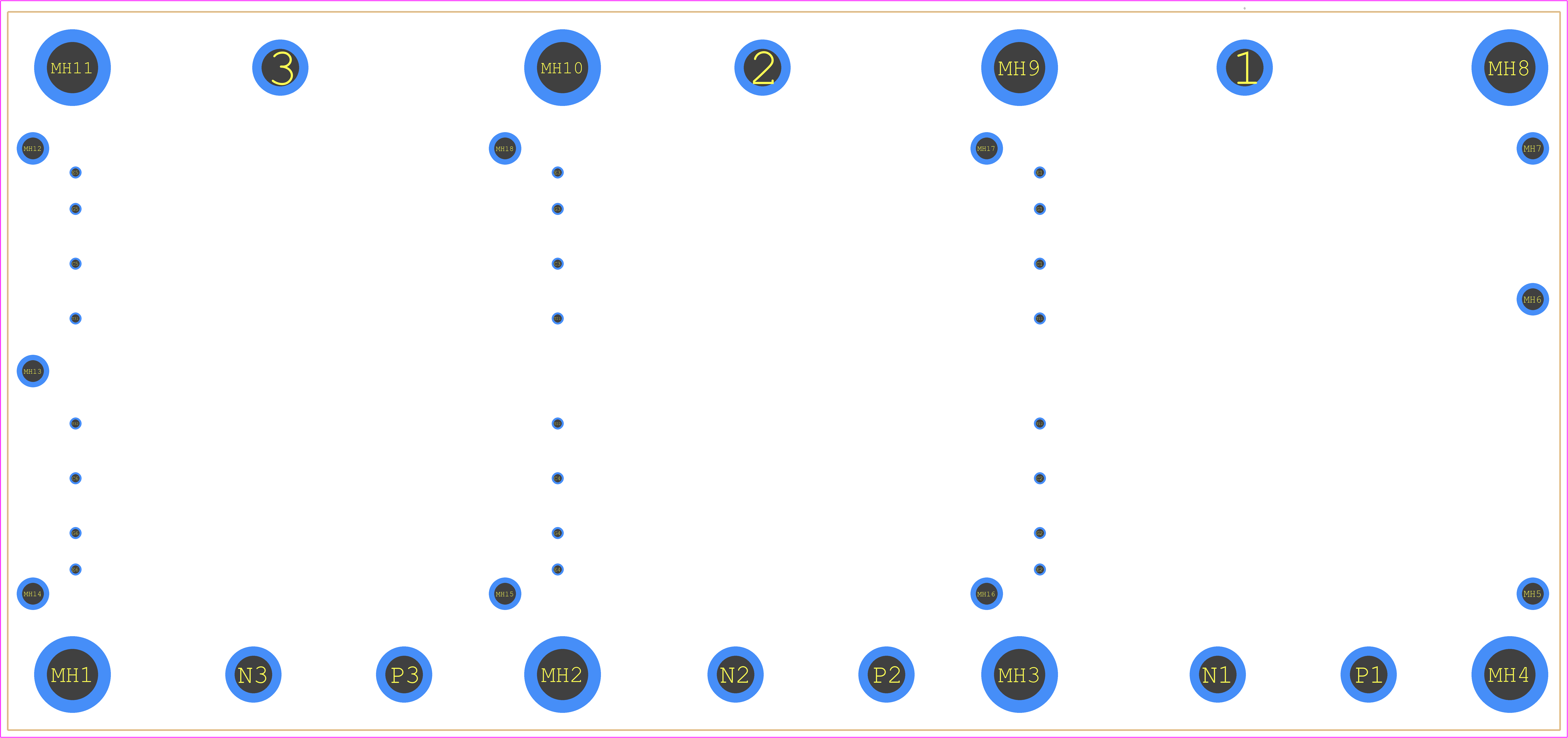

FS400R12A2T4 - Infineon PCB footprint - Other - Other - FS400R12A2T4-6
click to zoom
3D Models
FS400R12A2T4 - Infineon  - 3D model - Other - FS400R12A2T4-6
click to zoom

FS400R12A2T4 Details

  • Manufacturer Part Number:

    FS400R12A2T4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    400 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    6

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    700 ns

  • Turn-on Time-Nom (ton):

    250 ns

FS400R12A2T4 Frequently Asked Questions (FAQs)

  • The maximum allowed voltage imbalance is ±10% of the nominal DC-link voltage. Exceeding this limit may affect the module's reliability and performance.
  • Ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce thermal resistance. The maximum allowed junction temperature is 150°C.
  • The recommended gate resistance is between 10 Ω and 20 Ω. A lower gate resistance can improve switching speed, but may increase power losses.
  • Yes, the module can be used in a parallel configuration, but ensure that the modules are properly synchronized and that the current sharing is balanced to avoid uneven stress on the modules.
  • The maximum allowed dv/dt is 10 kV/μs. Exceeding this limit may cause the module to malfunction or fail.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS400R12A2T4 Overview

Use the download button to access the FS400R12A2T4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS400, or try a keyword search, such as IGBTs
