FS45MR12W1M1_B11 - Infineon

Description: modulewithCoolSiC™TrenchMOSFETandPressFIT/NTC

Download FS45MR12W1M1_B11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

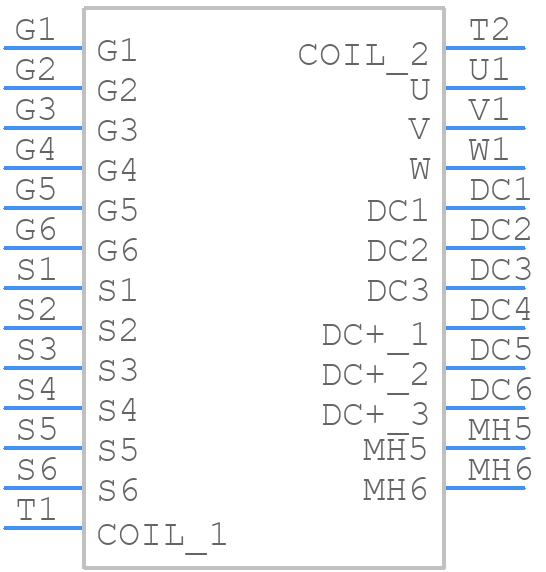

Symbol
FS45MR12W1M1_B11 - Infineon - PCB symbol
click to zoom

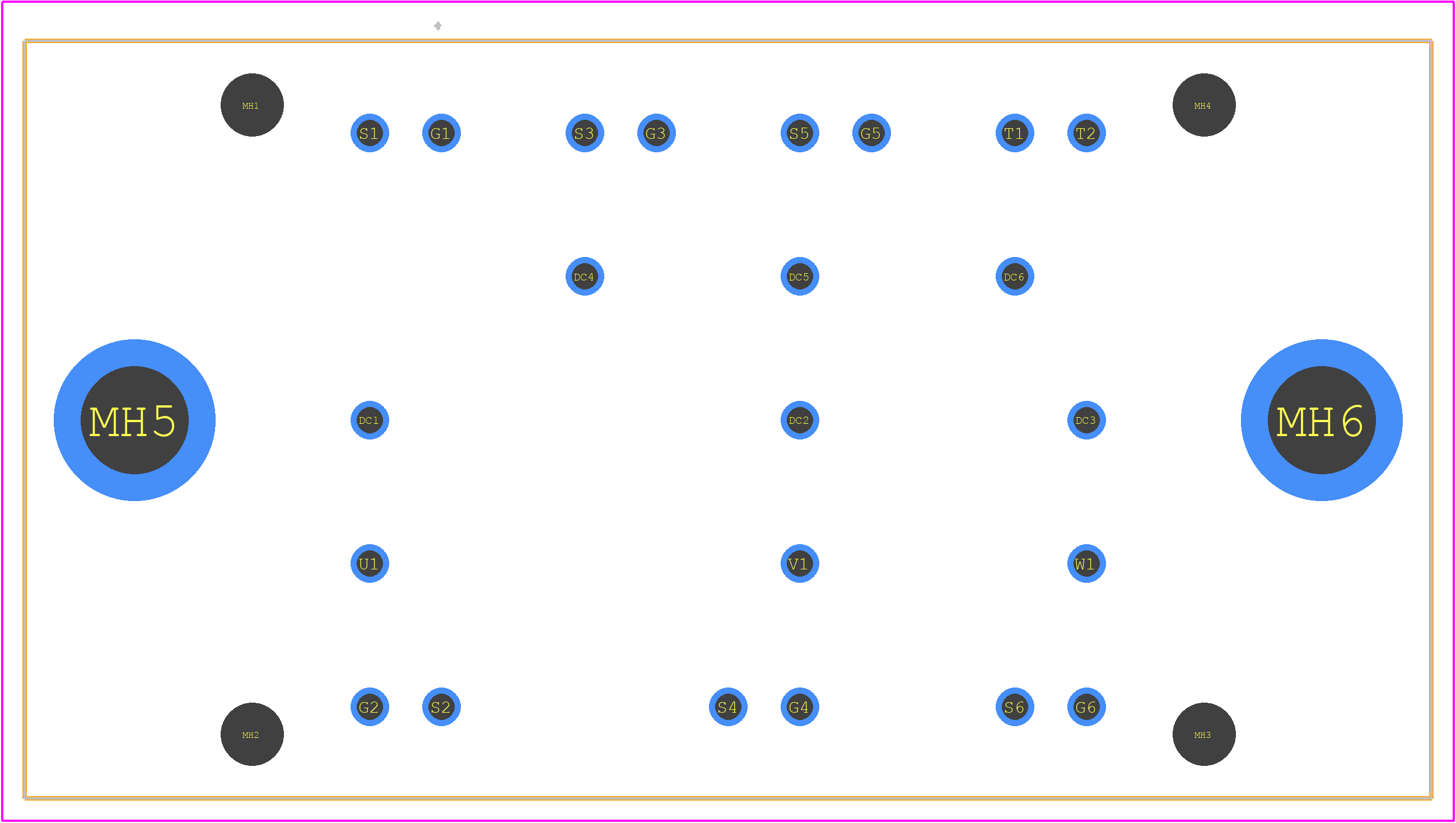

PCB Footprints
FS45MR12W1M1_B11 - Infineon PCB footprint - Other - Other - FS45MR12W1M1_B11-5
click to zoom
3D Models
FS45MR12W1M1_B11 - Infineon - 3D model - Other - FS45MR12W1M1_B11-5
click to zoom

FS45MR12W1M1_B11 Details

  • Manufacturer Part Number:

    FS45MR12W1M1_B11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-22

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    1200 V

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    14 pF

  • JESD-30 Code:

    R-XUFM-X22

  • Number of Elements:

    6

  • Number of Terminals:

    22

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    50 A

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

FS45MR12W1M1_B11 Frequently Asked Questions (FAQs)

  • The thermal resistance (Rth) of the FS45MR12W1M1_B11 is typically around 1.5 K/W (junction to case) and 3.5 K/W (junction to ambient) at a maximum junction temperature of 150°C.
  • Yes, the FS45MR12W1M1_B11 is designed for high-reliability applications, such as automotive and industrial systems, and meets the requirements of AEC-Q101 and IATF 16949 standards.
  • To ensure proper cooling, follow the recommended PCB layout and thermal design guidelines provided by Infineon. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
  • The maximum allowed voltage for the FS45MR12W1M1_B11 is 12 V, with a maximum voltage tolerance of ±10%.
  • The FS45MR12W1M1_B11 is designed for high-frequency applications up to 1 MHz, but it's essential to consider the device's switching characteristics, layout, and PCB design to minimize parasitic effects.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS45MR12W1M1_B11 Overview

Use the download button to access the FS45MR12W1M1_B11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS45M, or try a keyword search, such as Power Field-Effect Transistors
