FS50R12KT4B15BOSA1 - Infineon

Description: Trans IGBT Module N-CH 1200V 50A 280000mW 28-Pin ECONO2-6 Tray

Download FS50R12KT4B15BOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

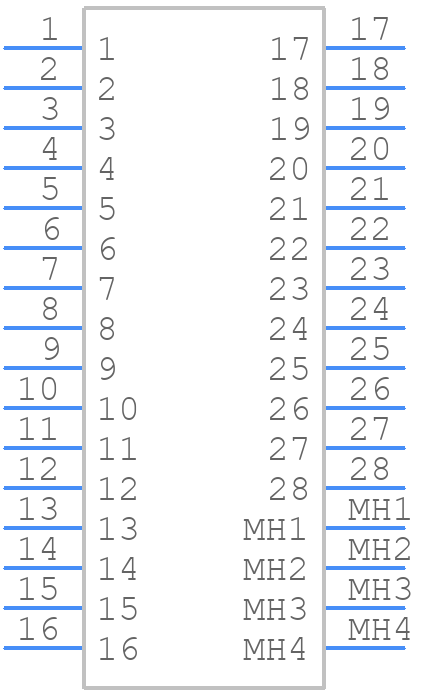

Symbol
FS50R12KT4B15BOSA1 - Infineon - PCB symbol
click to zoom

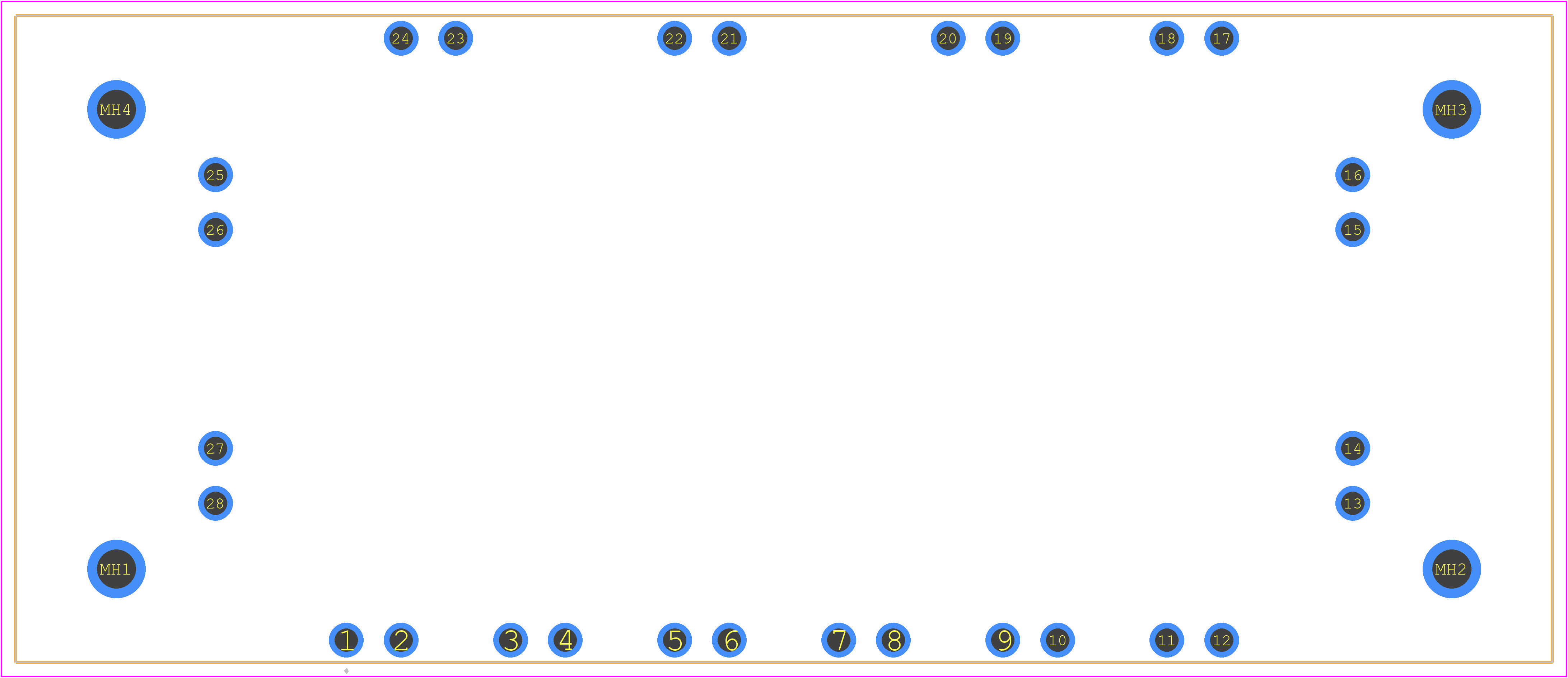

PCB Footprints
FS50R12KT4B15BOSA1 - Infineon PCB footprint - Other - Other - FS50R12KT4B15BOSA1
click to zoom
3D Models
FS50R12KT4B15BOSA1 - Infineon - 3D model - Other - FS50R12KT4B15BOSA1
click to zoom

FS50R12KT4B15BOSA1 Details

  • Manufacturer Part Number:

    FS50R12KT4B15BOSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    MODULE-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    2

  • Case Connection:

    ISOLATED

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X28

  • Number of Elements:

    6

  • Number of Terminals:

    28

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Reference Standard:

    UL APPROVED

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    490 ns

  • Turn-on Time-Nom (ton):

    185 ns

FS50R12KT4B15BOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS50R12KT4B15BOSA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the FS50R12KT4B15BOSA1 is typically in the range of 10 ohms to 20 ohms, but may vary depending on the specific application and switching frequency.
  • Yes, the FS50R12KT4B15BOSA1 can be used in a parallel configuration, but it's essential to ensure that the modules are properly matched and synchronized to avoid uneven current sharing and thermal issues.
  • The maximum allowable voltage transient for the FS50R12KT4B15BOSA1 is typically 1.5 times the maximum rated voltage, but it's recommended to consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS50R12KT4B15BOSA1 Overview

Use the download button to access the FS50R12KT4B15BOSA1 schematic symbol, PCB footprint, and 3D model.
