A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's current handling capability at high temperatures.
The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it is recommended to keep the input voltage below 5V.
Use a TVS (Transient Voltage Suppressor) diode or a zener diode to clamp the voltage and protect the device from EOS. Also, ensure that the input voltage is within the recommended operating range.
A 10nF to 100nF ceramic capacitor is recommended for input decoupling, depending on the specific application requirements and noise sensitivity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS7140-02G-XTD Overview

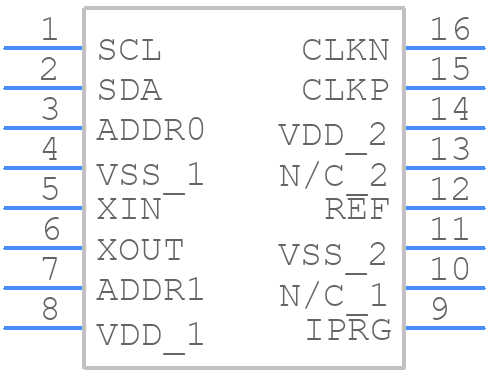

Use the download button to access the FS7140-02G-XTD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS714,
or try a keyword search
