FS75R12KT4_B15 - Infineon

Description: Infineon FS75R12KT4_B15, IGBT Module, 3 Phase, 75 A max, 1200 V, 28-Pin Econo2

Download FS75R12KT4_B15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

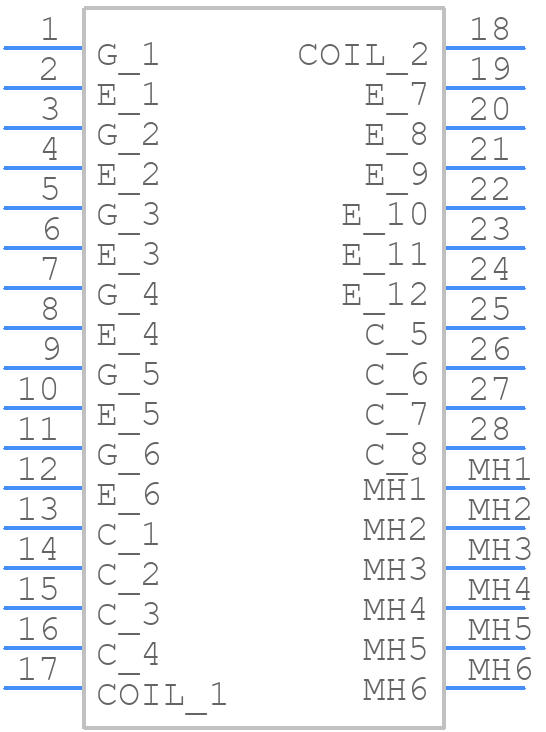

Symbol
FS75R12KT4_B15 - Infineon - PCB symbol
click to zoom

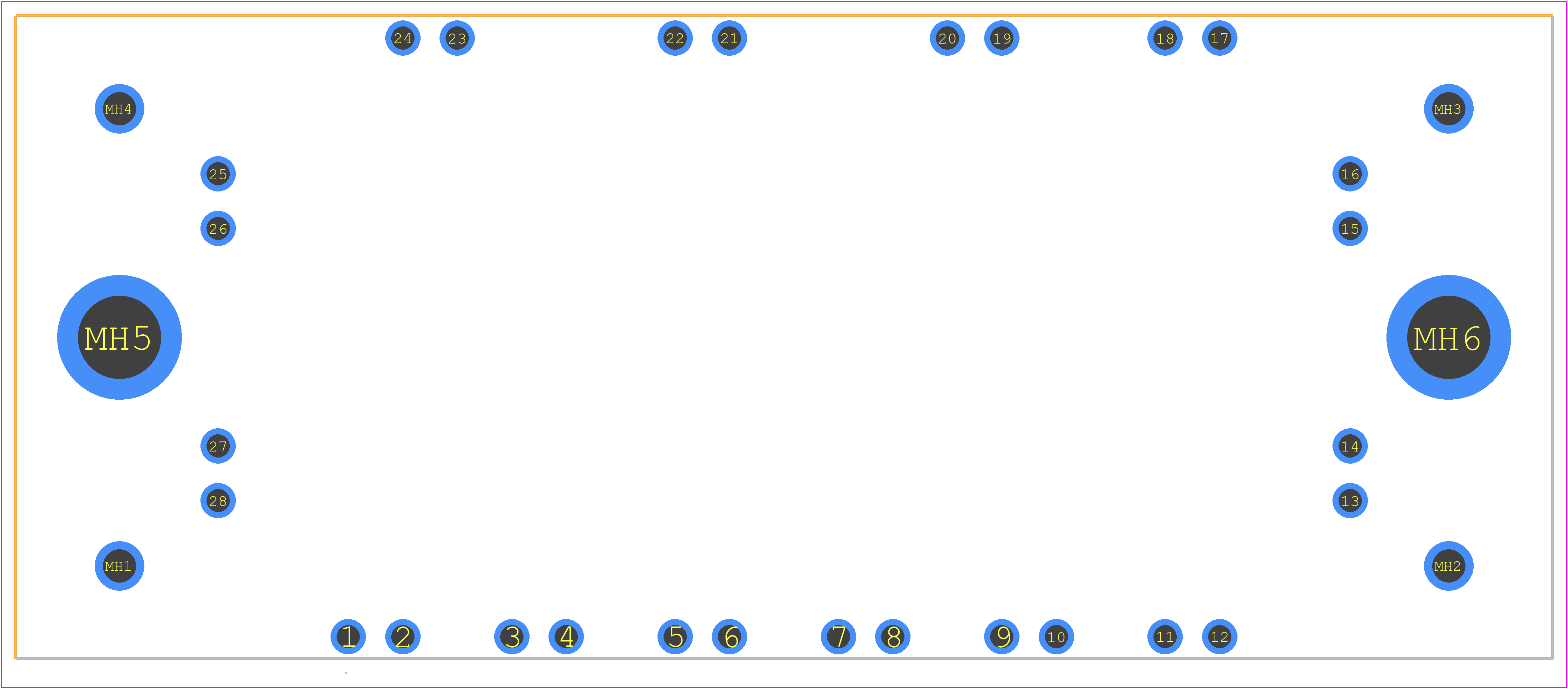

PCB Footprints
FS75R12KT4_B15 - Infineon PCB footprint - Other - Other - FS75R12KT4_B15-2
click to zoom
3D Models
FS75R12KT4_B15 - Infineon - 3D model - Other - FS75R12KT4_B15-2
click to zoom

FS75R12KT4_B15 Details

  • Manufacturer Part Number:

    FS75R12KT4_B15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    28

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    75 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X28

  • Number of Elements:

    6

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    385 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    490 ns

  • Turn-on Time-Nom (ton):

    185 ns

  • VCEsat-Max:

    2.15 V

FS75R12KT4_B15 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the FS75R12KT4_B15 is 175°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 1 K/W is recommended. Additionally, the MOSFET should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The maximum current rating of the FS75R12KT4_B15 is 75A, as specified in the datasheet. However, this rating is dependent on the operating conditions and cooling system used.
  • To protect the FS75R12KT4_B15 from overvoltage and overcurrent, a suitable voltage regulator and current limiter should be used. Additionally, a fuse or circuit breaker can be used to protect against overcurrent conditions.
  • The recommended gate drive voltage for the FS75R12KT4_B15 is between 10V and 15V, as specified in the datasheet. A higher gate drive voltage can improve switching performance, but may also increase power consumption.
