A good PCB layout for the FSA1153UCX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, make sure to connect the EN pin to a logic high (VCC) and the FB pin to the output voltage divider. Also, ensure that the input voltage is within the recommended range (4.5V to 18V) and that the output voltage is set correctly using the resistor divider.
The FSA1153UCX can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's recommended to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
To protect the FSA1153UCX from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to monitor the input voltage and shut down the device if it exceeds the recommended range. Additionally, use a TVS diode or a zener diode to clamp the input voltage to a safe level.
The recommended input capacitor value is 10uF to 22uF, and it should be a low-ESR ceramic capacitor (X5R or X7R dielectric) with a voltage rating of at least 25V. This helps to filter out input noise and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA1153UCX Overview

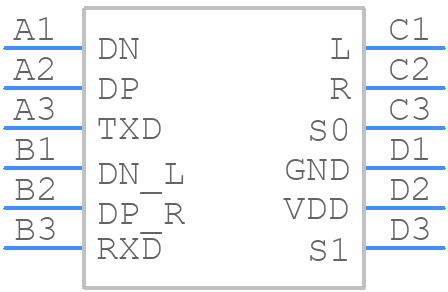

Use the download button to access the FSA1153UCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA11,
or try a keyword search, such as Multiplexers or Switches
