FSA2466UMX - onsemi

Description: Bandwidth: 245MHz ; Low ICCT ; RFLAT: 0.8Ω to 2.7V; CON at 240MHz: 16pF ; COFF at 240MHz: 16pF ; RON: 2.5Ω to 2.7V; Switch Type: DPDT (2x) ; Package: 16- Lead UMLP 1.80 x 2.60 x 0.55mm, 0.40mm pitch; Input Signal Range: 0 to VCC ; ESD: 8kV HBM ; Input Type: Data / Audio Switch ; VCC: 1.65 to 4.3

Download FSA2466UMX Model
Schematic

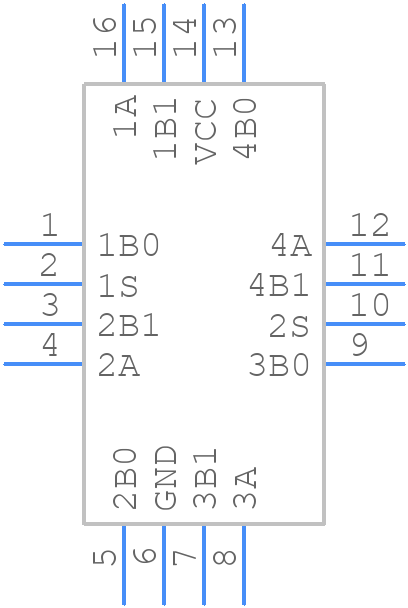

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSA2466UMX - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Pin Ultrathin Molded Leadless Package (UMLP
click to zoom
3D Models
FSA2466UMX - onsemi  - 3D model - Quad Flat No-Lead - 16-Pin Ultrathin Molded Leadless Package (UMLP
click to zoom

FSA2466UMX Details

  • Manufacturer Part Number:

    FSA2466UMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-16

  • Package Description:

    UQFN-16

  • Manufacturer Package Code:

    523BF

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.78

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    81 dB

  • On-state Resistance Match-Nom:

    0.03 Ω

  • On-state Resistance-Max (Ron):

    6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    4.45 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-on Time-Max:

    80 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

FSA2466UMX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FSA2466UMX involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the FSA2466UMX, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power and ground pins are connected to a solid power and ground plane on the PCB.
  • The FSA2466UMX can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To optimize the FSA2466UMX for low power consumption, use a low-power mode (e.g., shutdown mode) when the device is not in use, reduce the supply voltage to the minimum required, and optimize the PCB layout to minimize power losses. Additionally, consider using a power management IC to regulate the power supply.
  • The FSA2466UMX has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or thermal pad on the device, and ensure good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
