FSA2567MPX - onsemi

Description: 3kV ESD Rating, >12kV Power/GND ESD Rating; Low On Resistance for Data Path: 6Ω Typical ; Packaged in: ; Low On Capacitance for Data Path: 10pF Typical ; Wide -3db Bandwidth: > 160MHz ; Low Power Quiescent Consumption: 1µA Maximum ; Pb-free 16-Lead UMLP (1.8 x 2.6mm) ; Pb-free 16-Lead MLP ; Low On Resistance for Supply Path 0.4Ω Typical ; 15µA Maximum ICCT Over Expanded Voltage Range (VIN=1.8V, VCC=4.3V)

Download FSA2567MPX Model

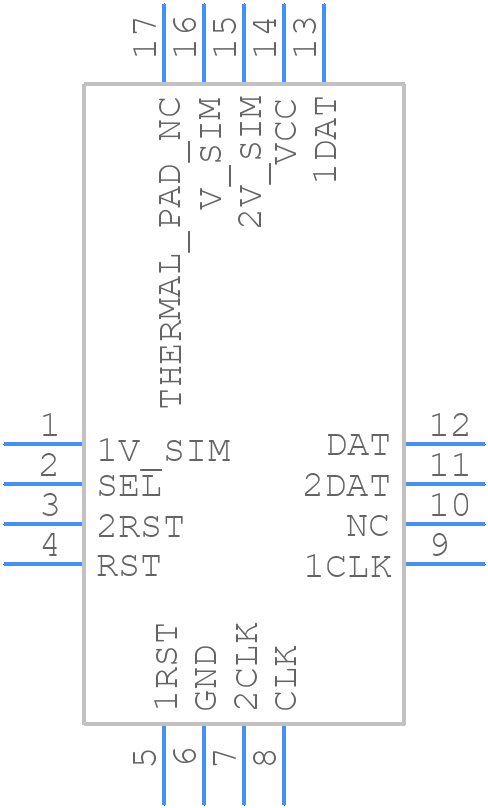

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSA2567MPX - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MLP
click to zoom
3D Models
FSA2567MPX - onsemi  - 3D model - Quad Flat No-Lead - MLP
click to zoom

FSA2567MPX Details

  • Manufacturer Part Number:

    FSA2567MPX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WQFN-16

  • Package Description:

    MLP-16

  • Manufacturer Package Code:

    510BS

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.28

  • Analog IC - Other Type:

    4PDT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • On-state Resistance-Max (Ron):

    12 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    50 ns

  • Switch-on Time-Max:

    95 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

FSA2567MPX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FSA2567MPX involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage (VIN) is within the recommended range of 2.7V to 5.5V, and that the output voltage (VOUT) is within the recommended range of 1.8V to 5.5V.
  • The maximum current rating of the FSA2567MPX is 1.5A. However, it's recommended to derate the current to 1.2A for optimal performance and to prevent overheating.
  • To protect the FSA2567MPX from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage to a safe level.
  • The thermal resistance of the FSA2567MPX package is typically around 30°C/W. However, this value can vary depending on the specific application and the PCB layout. It's recommended to use a thermal pad or a heat sink to improve heat dissipation and reduce the junction temperature.
