FSA4476UCX - onsemi

Description: USB Type-C analog audio switch with protection function

Download FSA4476UCX Model

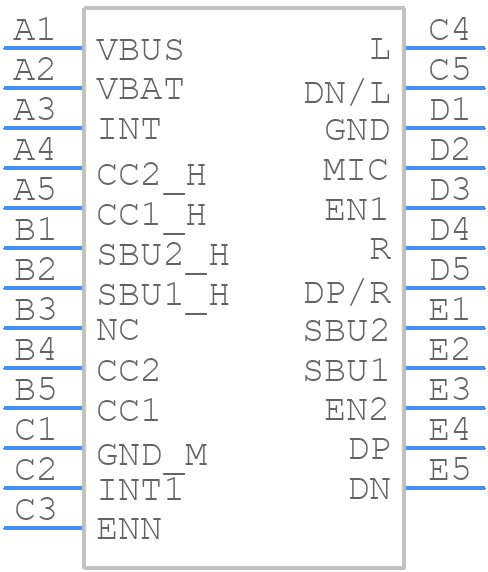

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSA4476UCX - onsemi PCB footprint - BGA - BGA - FSA4476UCX
click to zoom
3D Models
FSA4476UCX - onsemi  - 3D model - BGA - FSA4476UCX
click to zoom

FSA4476UCX Details

  • Manufacturer Part Number:

    FSA4476UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP-25

  • Package Description:

    WLCSP-25

  • Manufacturer Package Code:

    567UP

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2017-06-09

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Off-state Isolation-Nom:

    100 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    UFBGA

  • Package Equivalence Code:

    BGA24,5X5,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, ULTRA THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

FSA4476UCX Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 1uF capacitor between AVCC and AGND.
  • Apply power to VCC and AVCC simultaneously, with a rise time of 1ms or slower. Ensure the power supply is stable and within the recommended voltage range. Initialize the device by setting the EN pin high and waiting for the POR signal to go low.
  • The FSA4476UCX supports data transfer rates up to 480 Mbps in USB 2.0 mode and up to 5 Gbps in USB 3.2 Gen 1 mode.
  • Use the EN pin to control the device's power state. Set EN high to enable the device and low to disable it. The device also has a built-in power-down mode, which can be enabled by setting the SUSPEND pin high.
  • The FSA4476UCX has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid overheating, as it can affect device reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSA4476UCX Overview

Use the download button to access the FSA4476UCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA44, or try a keyword search, such as Multiplexers or Switches
